Mircom LR-3000-0-0 is a weather-resistant UHF long-range reader for tags and cards. The electronics and antenna are built into a single compact enclosure.

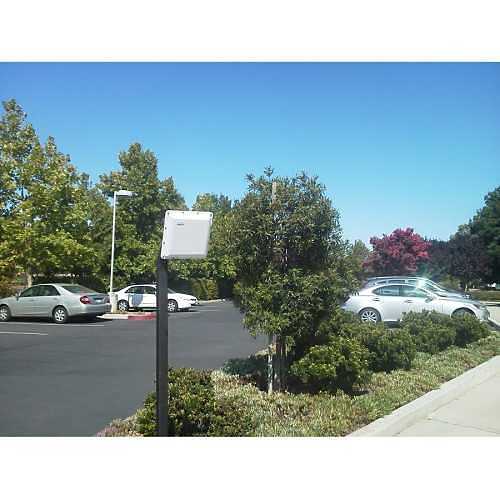

It is used for automatic vehicle identification and access control, for example gate control in a parking facility. It can also identify people at doorways, wheelchairs at elevators and gurneys at hospital entrances. Reading range is up to 25 ft between reader and tag, and data is output in Wiegand format.
Features
- Reads up to 25 ft
- No reader programming needed, simple wiring
- Passive, battery-free tags and cards
- Selectable read repeat rate
- Programmable RF field strength, to avoid cross-reading between lanes
- Optional buried loop to switch on the RF circuit only when needed
- Red LED for power, green LED for tag reading
- Same code format as proximity readers
Specifications
| Type |
UHF long-range reader |
| Interface |
Wiegand |
| Read range |
Up to 25 ft |
| Depth |
1.3 in |
| Use |
Indoor and outdoor |
| Color |
White |
| Environmental |
RoHS |
FAQ
How far can the LR-3000-0-0 read?
Up to 25 ft between reader and tag.
What output does it provide?
Wiegand format, the same code format as proximity readers.
Does it need programming?
No reader programming is needed, and wiring is simple.
What tags does it use?
Passive, battery-free UHF tags and cards.
