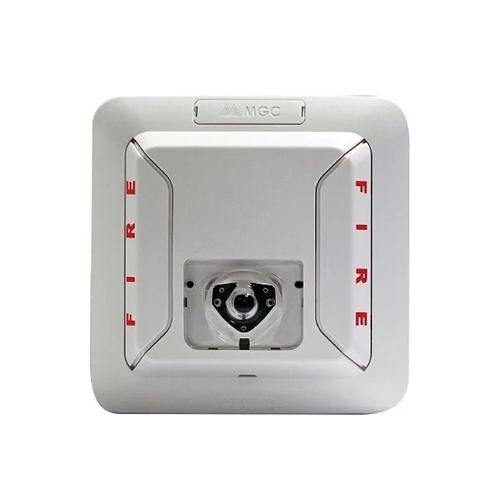

Mircom FS-400C-WW — white ceiling-mount LED strobe, field-selectable 15/15-75/30/75/110 cd.
Ceiling mounting is the practical answer in corridors, lobbies and open areas where wall space is taken or sightlines are poor. The FS-400C uses an LED source rather than a xenon tube, so current draw drops and more devices fit on a NAC. The candela setting shows through the front window; the selector sits on the back, out of reach of tampering.
- Strobe only, no horn; indoor use
- 24 VDC regulated or 24 VFWR; operating range 16 to 33 V RMS
- Current at 24 VDC regulated: 37 mA at 15 cd rising to 226 mA at 110 cd
- Flash rate 1 Hz; 0°C to 50°C
- 4 27/32" (123 mm) square; takes 12 to 22 AWG
- UL 1971, UL 1638 and ULC-S526 listed; universal mounting plate
For surface mount, order the BB-400W white back box — the BB-400R is the red version and will not match this appliance. Mircom white 400-series models also carry an ALERT label rather than FIRE, so do not order white where a FIRE-marked appliance is specified.
