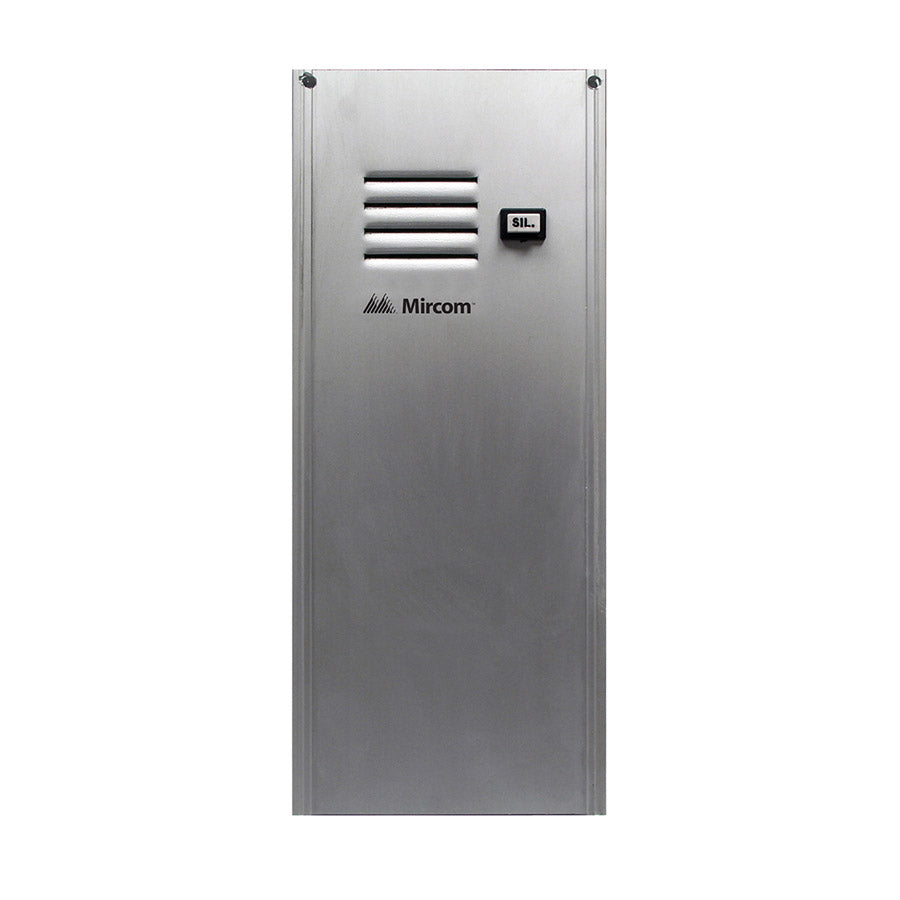

Mircom EC-300 is a dual-state central alarm panel for the EC-300 nurse call system. It is certified to UL 1069.
In a basic system, patient calling stations, emergency calling stations, a central nurse station, dome lights, optional corridor horns and duty stations connect to it. Emergency calls come from the EC-103 or EC-115 pull/push cord stations and are shown by a flashing suite dome light and a central annunciator LED. A normal call from a call station gives a slower flashing indication. Tones can be silenced, but the call is reset only from the station that placed it, and the tones start again if the call is not answered within a preset time.
Features
- UL 1069 certified
- Fast, slow and steady alarm states, each programmable for emergency, normal patient or door alarm calls
- Remote duty stations for signal silence and alarm annunciation
- Subsequent alarm: with EC-103 pull cord stations, a silenced alarm re-triggers on a new call
- Common alarm contact for peripheral alarm devices
- Remote signalling and control outputs
- Modular design, expandable with add-on annunciator panels
Specifications
| Type |
Central alarm panel, dual state |
| Height |
11.8 in |
| Width |
4.8 in |
| Standard |
UL 1069 |
Documents
FAQ
What alarm states does the EC-300 provide?
Fast, slow and steady. Each can be programmed for emergency, normal patient or door alarm calls.
How is a call reset?
Tones can be silenced at the central panel, but the call is reset only from the station that placed it. Tones start again if the call is not answered in time.
Can duty stations be added?
Yes. Remote duty stations provide signal silence and remote alarm annunciation.
Which stations place emergency calls?
The EC-103 or EC-115 pull/push cord stations.
