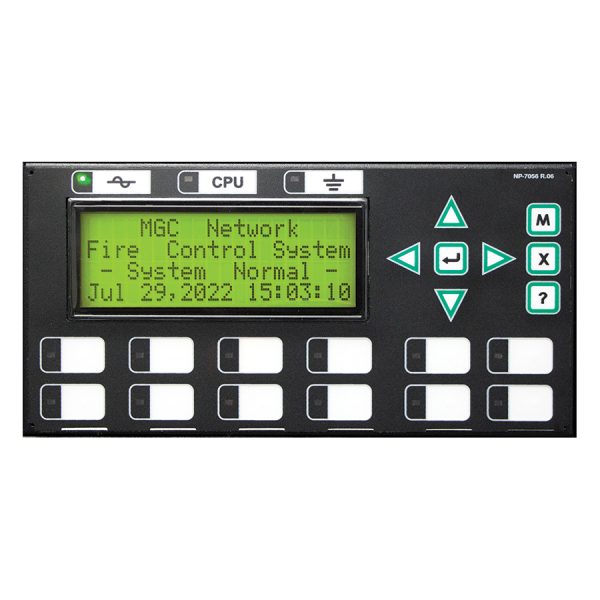

Mircom DSPL-420DS Main Display Module
The Mircom DSPL-420DS Main Display Module provides a clear, user-friendly interface for compatible Mircom fire alarm control panels. Featuring a 4-line by 20-character backlit LCD display, tactile membrane switches, and dedicated system control buttons, it allows operators to easily monitor system status and respond to events.
Designed for use with Mircom FX-2000, FleX-Net™ (FX-2000N), and MMX fire alarm panels, the DSPL-420DS occupies one display position in the BBX-FXMNS enclosure. The intuitive menu system and dedicated status queues help simplify system operation while providing quick access to critical fire alarm information.
Key Features
-
4-line by 20-character backlit LCD display
-
Easy-to-use menu-driven interface
-
Durable tactile membrane switches
-
Common Control buttons with selector switches and LED indicators
-
Four dedicated Status Queues:
-
Alarm
-
Supervisory
-
Trouble
-
Monitor
-
System status LEDs for:
-
A.C. On
-
Pre-Alarm
-
Ground Fault
-
Control functions include:
-
System Reset
-
Signal Silence
-
Fire Drill
-
Acknowledge
-
General Alarm
-
Lamp Test
-
Occupies one display position in the BBX-FXMNS enclosure
-
Genuine Mircom replacement and expansion module
Compatible Panels
The Mircom DSPL-420DS is compatible with:
-
Mircom FX-2000 Fire Alarm Panels
-
Mircom FleX-Net™ (FX-2000N) Fire Alarm Panels
-
Mircom MMX Fire Alarm Panels
Applications
The DSPL-420DS is ideal for commercial, industrial, healthcare, educational, and institutional fire alarm systems where operators require an intuitive display and convenient access to system controls and status information.
Specifications
-
Manufacturer: Mircom
-
Model: DSPL-420DS
-
Product Type: Main Display Module
-
Display: 4-line × 20-character backlit LCD
-
Interface: User-friendly menu system
-
Status Queues: Alarm, Supervisory, Trouble, Monitor
-
Controls: System Reset, Signal Silence, Fire Drill, Acknowledge, General Alarm, Lamp Test
-
Status Indicators: A.C. On, Pre-Alarm, Ground Fault
-
Mounting: One display position in the BBX-FXMNS enclosure
-
Compatibility: FX-2000, FleX-Net™ (FX-2000N), and MMX Fire Alarm Panels
Why Choose the Mircom DSPL-420DS?
The Mircom DSPL-420DS combines an easy-to-read backlit LCD, intuitive controls, and dedicated status indicators into a single display module, making fire alarm system operation more efficient. Its compatibility with multiple Mircom control panels and robust design make it an excellent choice for new installations, system upgrades, and replacement applications.
