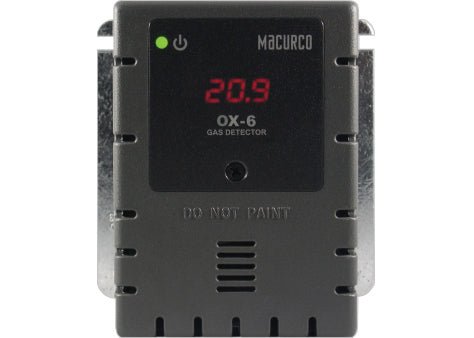

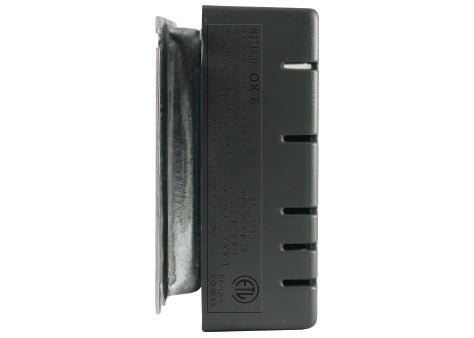

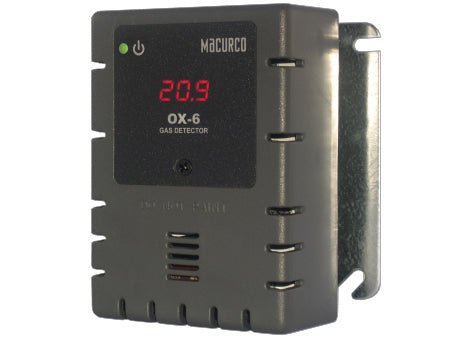

Macurco OX-6 Oxygen Monitor O2 Low Voltage (12 to 24 VAC or 12 to 32 VDC) Fixed Gas Detector and Controller
The OX-6 is a low-voltage, dual-relay oxygen (O2) detector and ventilation controller that measures 0-25% oxygen by volume. It is used where oxygen depletion or enrichment is a concern, such as hospitals, cryogenic and gas storage areas, and can work stand-alone or as a 4-20 mA transducer for the Macurco DVP-120 control panel family. The electrochemical sensor is field replaceable.
Key Features
- Low voltage: 12 to 24 VAC or 12 to 32 VDC
- 5 A SPDT fan control relay
- 0.5 A N.O. or N.C. alarm relay
- Selectable fan and alarm relay actuation settings
- Digital display (0-25% v/v O2) and internal buzzer
- 4-20 mA current loop output
- Field-replaceable electrochemical sensor
- Coverage area up to 1,257 sq. ft.

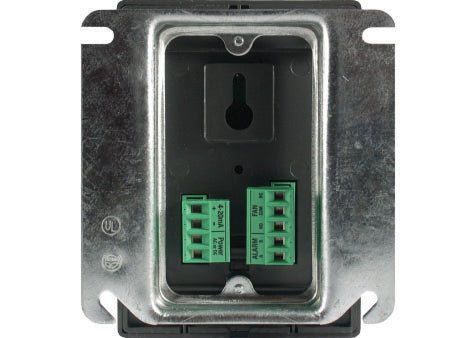

- Mounts on a standard 4x4 electrical box; ETL Listed
Specifications
| Measuring range |
0-25% v/v oxygen |
| Power |
3 W max, 12-24 VAC or 12-32 VDC |
| Fan relay |
5 A, 240 VAC, pilot duty, SPDT |
| Alarm relay |
0.5 A, 120 V, 60 VA |
| Alarm relay settings |
Disabled, 18.5, 19, 19.5 (default), 20, 20.5% and high 23.5% v/v |
| Buzzer |
85 dBA at 10 cm |
| Operating environment |
0 to 125 F (-18 to 52 C), 10-90% RH non-condensing |
| Size |
4-1/2 x 4 x 2-1/8 in. |
| Color |
Dark gray |
Compatible With
- Macurco DVP-120 control panel family
- Macurco MRS-485 Modbus adapter
