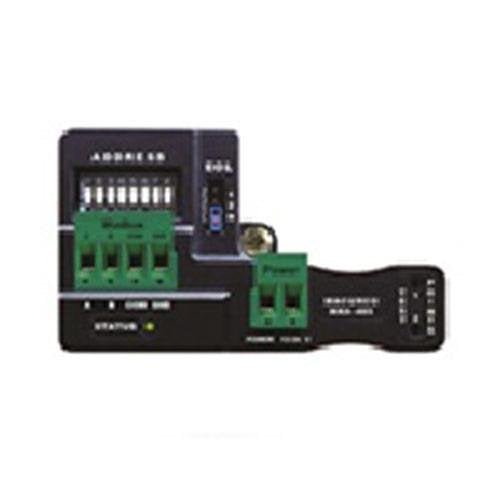

Macurco MRS-485 Modbus RS-485 Adapter for Macurco 6-Series Detectors
The MRS-485 is an accessory that converts the 4-20 mA analog output of a Macurco 6-Series detector into a Modbus RTU signal on an RS-485 serial line for multipoint addressable systems. It plugs into the back of the detector, is held by one screw, and is powered from the same connection as the detector. It lets the detector report sensor type, gas level and trouble status to building automation systems, control panels or other Modbus devices.
Key Features
- Converts 6-Series detector 4-20 mA output to Modbus (RTU) over RS-485
- Reports sensor type, gas level and trouble status
- Mounts behind the detector inside a standard 4 in. x 4 in. electrical box
- 8-bit DIP switch address selector
- Tricolor LED for power, test and communication status
- Selectable RS-485 line termination (jumper)
- Mounting screw and screwdriver included
Specifications
| Power (with detector) |
3.25 W max, 12 to 24 VAC or VDC |
| Current @ 24 VDC (with detector) |
85 mA alarm, 60 mA fan relay on, 33 mA standby |
| Size |
3-1/2 x 2 x 1-3/4 in. (8.9 x 5.1 x 4.4 cm) |
| Shipping weight |
0.25 lb (0.11 kg) |
| Operating environment |
0 to 125 F (-18 to 52 C), 10-90% RH non-condensing |
| Connections |
Plugs/terminals |
Compatible With
- Macurco 6-Series detectors (CM-6, GD-6, OX-6, CD-6 etc.)
- Modbus building automation systems and control panels
