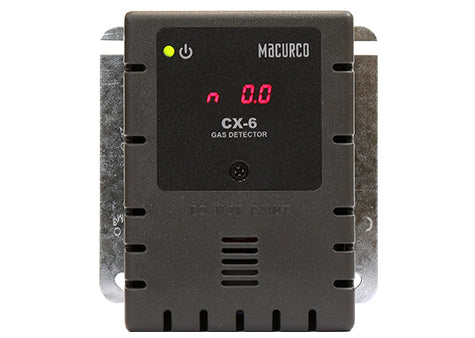

Macurco CX-6-NO2 is the low-voltage nitrogen dioxide (NO2) fixed gas detector and controller in a gray housing, with a field-replaceable sensor. It replaces the Macurco TX-6-ND. It detects NO2 in commercial facilities such as parking garages and loading docks, and works as a standalone detector, controller or analog transducer for Macurco control panels.
Specifications
| Gas |
Nitrogen dioxide (NO2) |
| Supply voltage |
12 to 24 VAC or 12 to 32 VDC |
| Housing |
Gray |
| Sensor |
Field replaceable, 4-5 year life |
| Fan relay |
5 A SPDT |
| Alarm relay |
0.5 A, N.O. or N.C. |
| Output |
4-20 mA current loop |
| Certification |
ETL certified to UL 2075; City of Los Angeles approval |
Features
- Digital display for NO2 and internal buzzer
- End-of-life notification for the sensor
- Selectable fan and alarm relay actuation settings
- Line-voltage version is the CX-12-NO2 (100-240 VAC)
