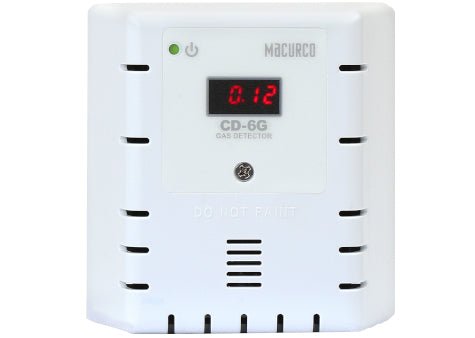

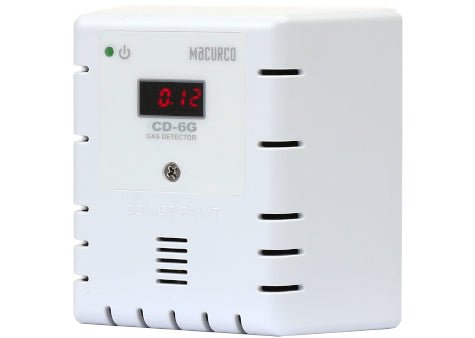

Macurco CD-6G White Housing-Carbon Dioxide Co2 Fixed Gas Detector-Range Of 0-5% By Vol. Manual Calibration (2 Relays, 4-20Ma Output).
The CD-6G is a low-voltage carbon dioxide (CO2) monitor with a high measuring range of 0-5% by volume (0-50,000 ppm). It provides automatic fan control and an alarm relay for greenhouses, beverage and food facilities, refrigeration, welding and similar commercial applications. It can run stand-alone or act as an analog/digital transducer for the Macurco DVP-120 and DVP-1200 control panels.
Key Features
- 12-24 VAC or 12-32 VDC input
- 5 A SPDT fan control relay
- 0.5 A N.O. or N.C. alarm relay
- Selectable fan and alarm relay actuation settings
- Digital display 0-5% v/v (0-50,000 ppm) CO2, internal buzzer
- 4-20 mA current loop output
- Recommended coverage area 900 to 5,000 sq. ft.
- ETL Listed
Specifications
| Measuring range |
0-5% v/v (0-50,000 ppm) CO2 |
| Input voltage |
12-24 VAC or 12-32 VDC |
| Fan relay |
5 A SPDT |
| Alarm relay |
0.5 A, N.O. or N.C. |
| Analog output |
4-20 mA |
| Calibration |
Manual |
| Housing color |
White |
Compatible With
- Macurco DVP-120 and DVP-1200 series control panels
- Macurco CO2 calibration gas cylinders
