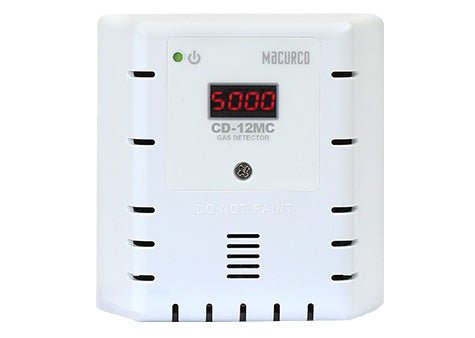

Macurco CD-12MC is the line-voltage (100-240 VAC) version of the CD-6MC / CD-12MC fixed carbon dioxide (CO2) monitor with manual calibration. It detects CO2 in beverage and food processing, refrigeration, welding, greenhouses, pharmaceutical and chemical processing areas, and can control a fan automatically to keep levels acceptable. It works as a standalone detector and controller or as a 4-20 mA transducer for the DVP-120 and other systems.
Specifications
| Gas |
Carbon dioxide (CO2) |
| Supply voltage |
100-240 VAC |
| Range / display |
0-5,000 ppm, digital display |
| Fan relay |
5 A SPDT |
| Alarm relay |
0.5 A, N.O. or N.C. |
| Output |
4-20 mA current loop |
| Coverage area |
Up to 5,000 sq. ft. |
| Calibration |
Manual |
| Size |
4-1/2 x 4 x 2-1/8 in. |
| Operating temperature |
32 to 122 degrees F (0 to 50 degrees C) |
Features
- Fan and alarm relay actuation settings are selectable
- Internal buzzer
- ETL certified
- The low-voltage version is the CD-6MC (12-24 VAC or 12-32 VDC)
