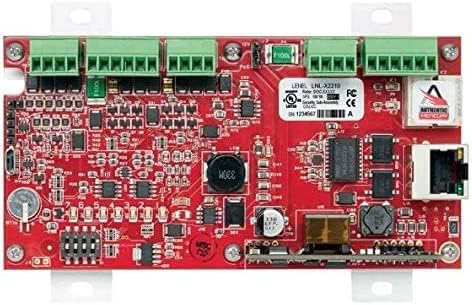

Lenel LNL-X2210 — X-Series Intelligent Single Door Controller, an Ethernet edge panel controlling one opening with one or two readers under OnGuard.
This is access control hardware, not a fire alarm device. Once configured it runs independently of the host, so access decisions and anti-passback continue when the network drops, and power arrives over the same Cat-5 run as the host connection.
- PoE 12.95 W (802.3af), PoE plus 25 W (802.3at), or local 12 VDC at 1.8 A max
- 6 MB flash, 240,000 cardholders, 50,000 event buffer, 128 access levels
- Two supervised or unsupervised inputs, 1k/1k ohm EOL, plus a tamper input; two Form-C relays at 2 A, 30 VDC resistive
- Reader port 1 takes TTL, F/2F or 2-wire RS-485; port 2 TTL or F/2F
- 5.5" × 2.75" × 0.96" without bracket, 0 to 70 °C operating
- UL 294, UL 2610, FCC Part 15, CE, RoHS
With OnGuard 6.6 or later, reader port 1 can instead run an RS-485 bus of up to eight separately powered LNL-1300 or LNL-1320 door interfaces or LNL-1100 or LNL-1200 I/O modules. USB2-OTGE100, LNL-1300-TAMPER and LNL-RPL-MTG-3G are separate.
