Lenel LNL-AL400ULX Power-Limited Supply Charger that will convert a 115 VAC 50/60 Hz input, into a power-limited 12 VDC output
The LNL-AL400ULX is the Lenel-branded version of the Altronix AL400ULX UL Listed power supply/charger used to power Lenel access control hardware. It converts 115 VAC, 60 Hz into a single power-limited 12 VDC (4 A) or 24 VDC (3 A) output, with a built-in charger for sealed lead acid or gel batteries and automatic switchover when AC fails. AC fail, low battery and battery presence are supervised through Form C contacts.
Key Features
- 12 VDC @ 4 A or 24 VDC @ 3 A, selectable
- Class 2 rated power-limited, filtered and electronically regulated output
- Built-in battery charger (0.7 A max) with automatic switchover and zero voltage drop on battery
- AC fail, low battery and battery presence supervision (Form C contacts)
- AC input, DC output and battery LED indicators
- Short circuit and thermal overload protection

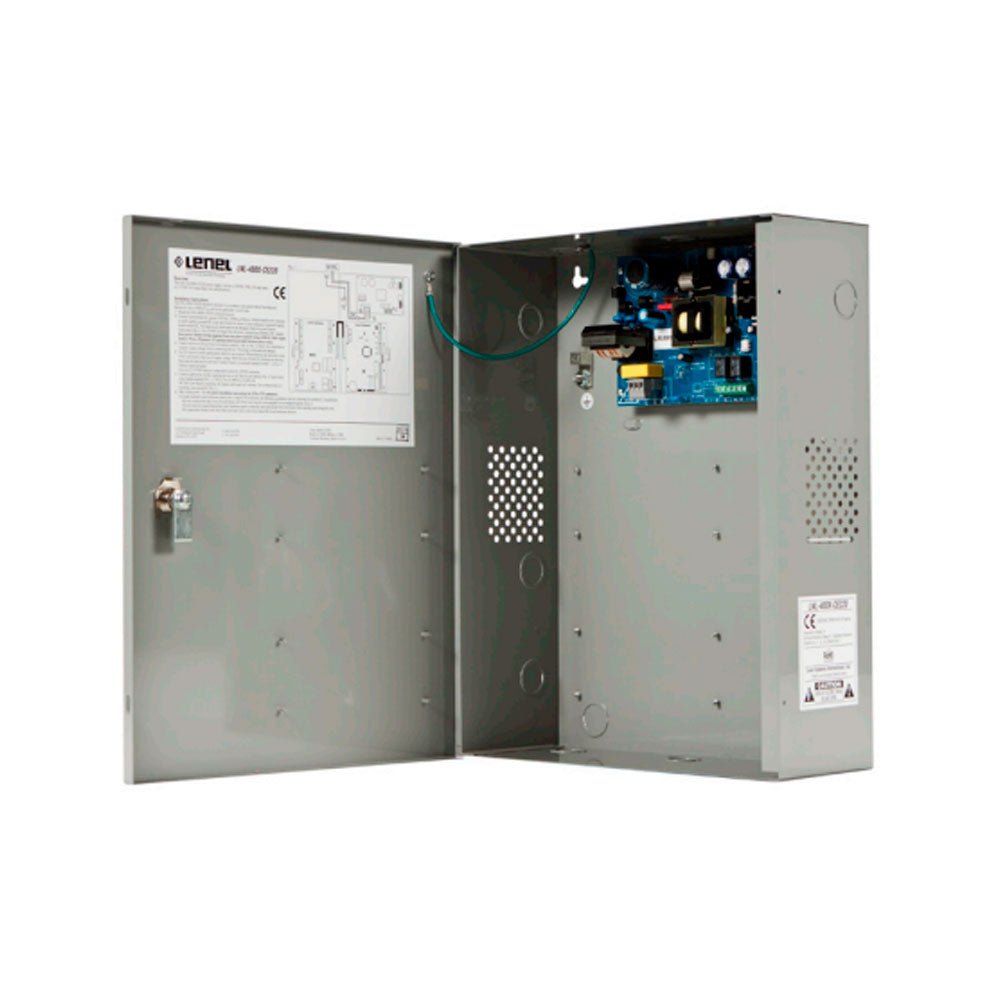

- Wall-mount indoor enclosure with 1/2 in. and 3/4 in. combination knockouts
Specifications
| Input |
115 VAC, 60 Hz, 3.5 A |
| Output |
12 VDC @ 4 A or 24 VDC @ 3 A |
| Max. charge current |
0.7 A |
| Enclosure dimensions (Altronix AL400ULX) |
12.5 W x 13 H x 3.25 D in. (317.5 x 330.2 x 82.6 mm) |
| Battery capacity (Altronix AL400ULX enclosure) |
Two 7 AH batteries |
| Operating temperature |
0 to 49 C (32 to 120 F) |
| UL listings (Altronix AL400ULX) |
UL 294, UL 603, UL 1481, UL 1069 |
Compatible With
- LenelS2 OnGuard access control hardware (LNL series modules)
