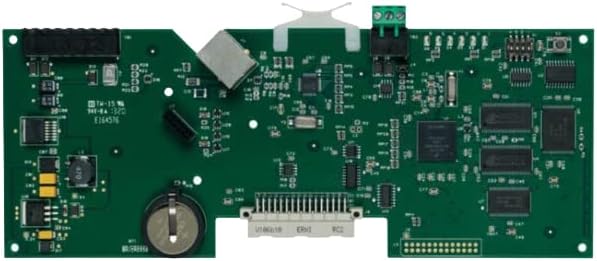

Lenel LNL-1320-2RP — M Series dual reader interface board that replaces the legacy CASI 2RP, part number 110063001.
This is access control hardware, not fire detection. Lenel M Series boards exist so a site on a legacy CASI M5 or M3000 controller can move to OnGuard without pulling new cable: power down, unplug the field wiring, swap the board, plug the wiring back. Readers, door contacts, request-to-exit devices and strikes keep the same terminations.
- Two doors and two readers per board; one board address each
- Reader formats: Wiegand, Clock and Data, Supervised F2F
- Six Form C relay outputs rated 5 A, plus four inputs
- RS-485 host connection; 12 VDC at 155 mA
- Door contacts and request-to-exit devices must be unsupervised, as on the legacy 2RP
- 0 to +70 °C operating, -55 to +85 °C storage; UL 294, CE, FCC and RoHS
Legacy CASI M Series boards cannot be mixed with Lenel M Series boards, so converting an M5 or M3000 means converting every board in it. Do not substitute a standard LNL-1320 Series 2 or Series 3 module either: that is a different board, with eight supervised inputs.
