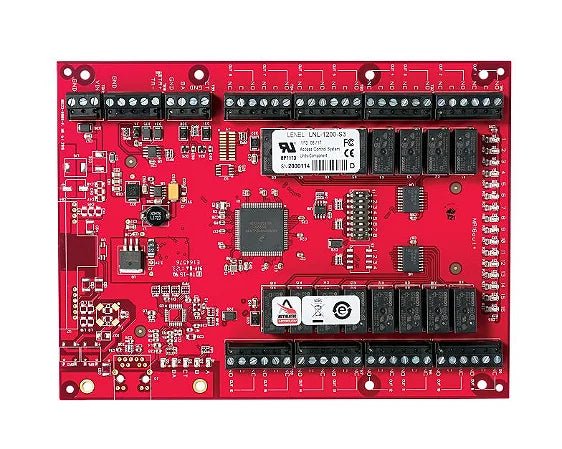

Lenel LNL-1200 — output control module for the OnGuard access control platform.
The LNL-1200 gives an OnGuard system a bank of programmable outputs for driving locks, alarms, sirens, lighting and other auxiliary devices from access control logic or alarm events, rather than wiring each device back to a controller individually.
It provides 16 programmable outputs, each configurable fail-safe or fail-secure and each responding to the On, Off and Pulse commands in OnGuard software. It connects to its controller over a 2-wire RS-485 interface, multi-dropped on a single bus of up to 4,000 ft (1,219 m), so modules can be distributed to where the load actually is. Primary power is 12 to 24 VDC ±10%, 1,100 mA maximum. Board dimensions 6 x 8 x 1 in. (152 x 203 x 25.4 mm).
Before ordering: the LNL-1200 exists in several variants and series — Series 2 and Series 3, and versions with relay outputs versus driver-array outputs, at different contact ratings. Confirm the exact suffix required for your panel and firmware, as they are not interchangeable.
