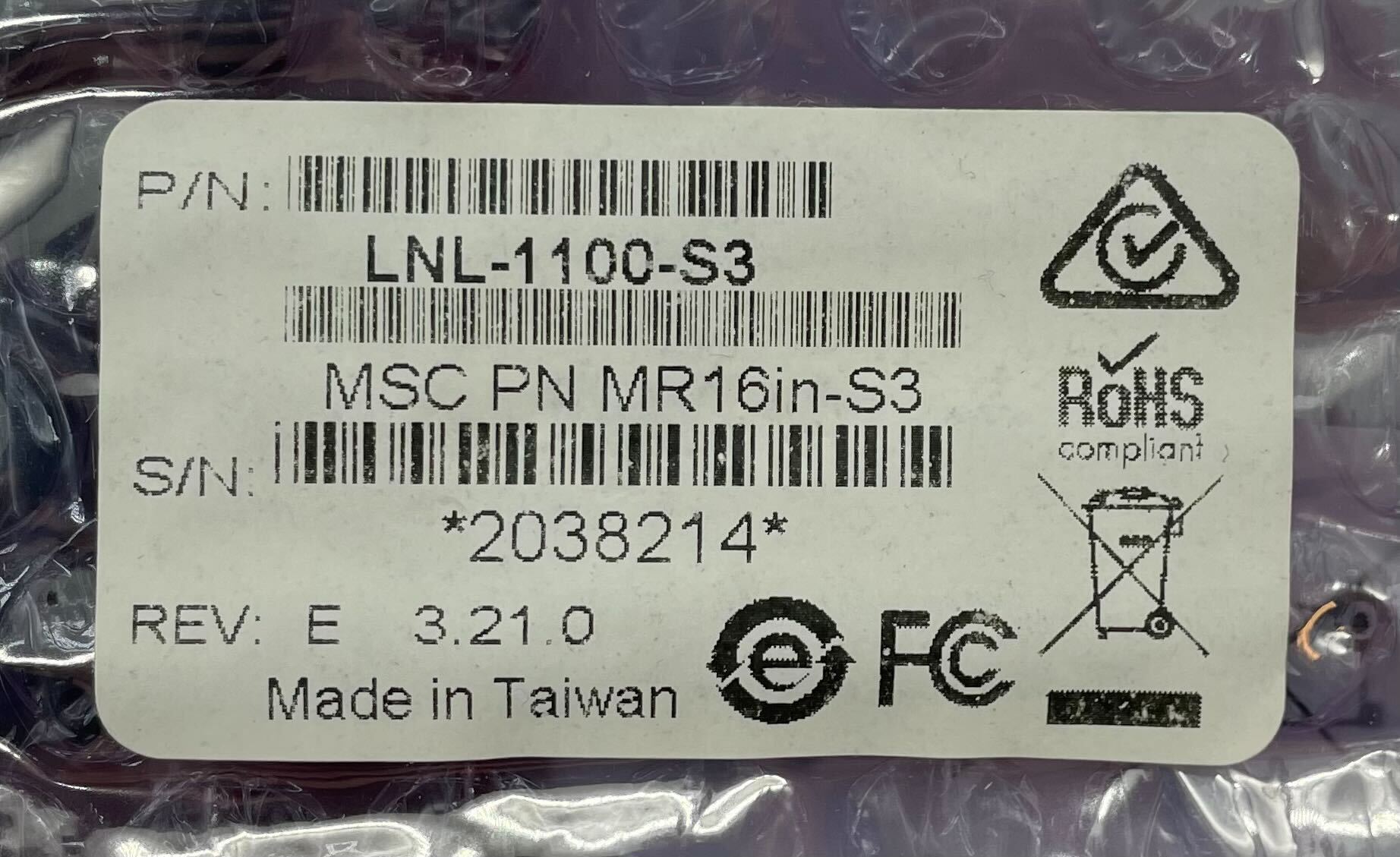

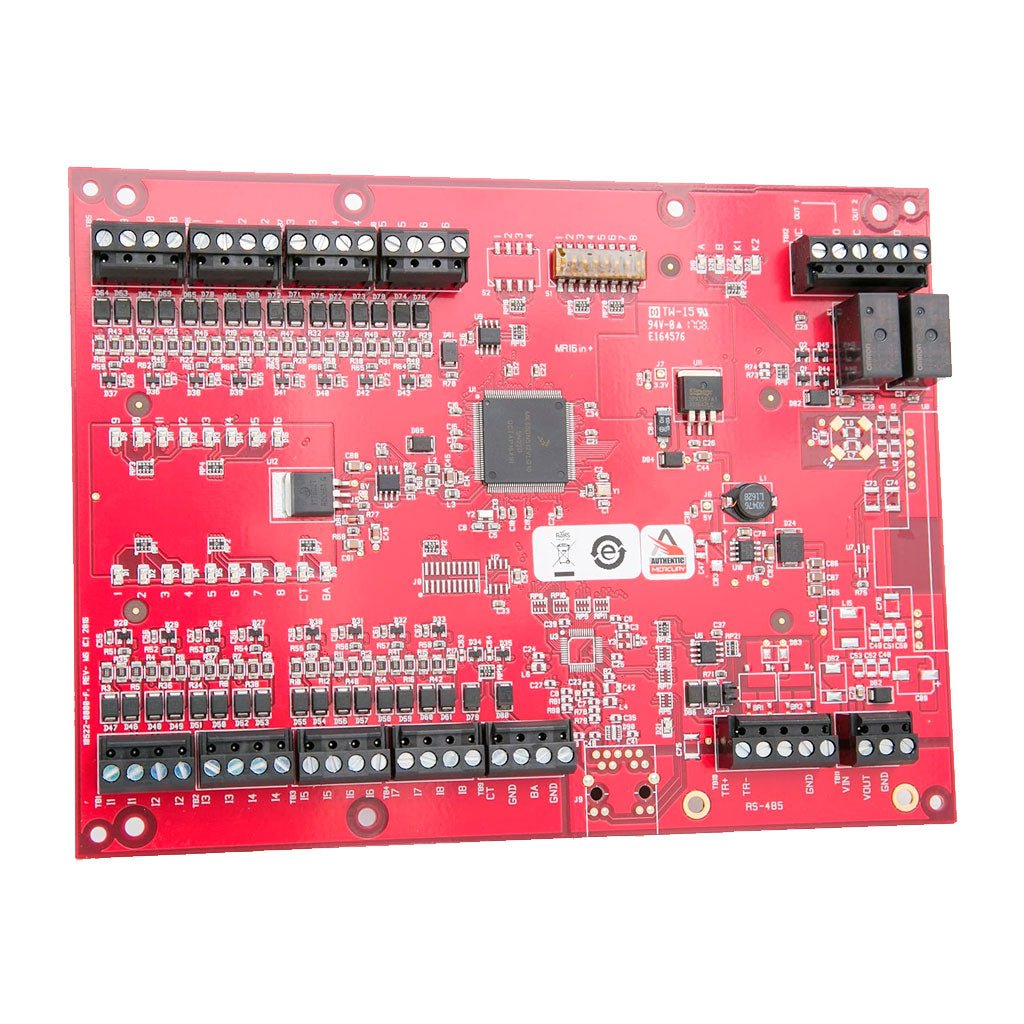

Lenel LNL-1100-S3 — Series 3 Input Control Module for LenelS2 OnGuard access control.
The ICM gives an access control system high-speed acknowledgement of critical alarm points. Each input is read through an analog-to-digital converter, so it can be programmed supervised or non-supervised in software. It is access control hardware, not a fire alarm device.
- 16 programmable contacts, supervised or non-supervised; standard end-of-line 1K/1K ohm, 1 percent, 1/4 watt
- Grade B, A and AA line supervision, with variable resistor values
- 2 dedicated unsupervised inputs for cabinet tamper and UPS fault
- 2 Form-C contacts, 5 A at 28 Vdc, fail-safe or fail-secure
- 2-wire or 4-wire RS-485 to the Intelligent System Controller, AES 256 encrypted to M-Series or X-Series
- 12 to 24 Vdc, 350 mA maximum; 300 mA at 12 Vdc, 220 mA at 24 Vdc
- DIP switch addressing, elevator control for 128 floors; UL 294 and UL 2610
It is suitable as a replacement for Series 1 and Series 2 boards. The parts most often confused with it are LNL-1200, the output control module, and the LNL-1300 and LNL-1320 reader interfaces.
