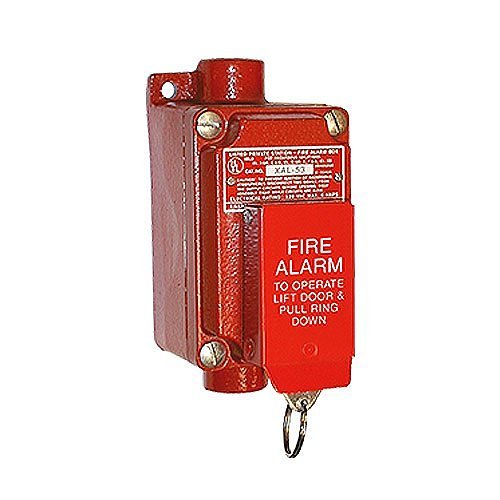

Kidde XAL53 is a double-action pull station for hazardous locations from the Genesis series. The user lifts the front cover and then pulls the ring down, a two-step action that prevents accidental operation.
After use, the station is reset by pressing the exposed shaft and returning the cover plate to its original position. The housing is copper-free aluminum alloy with a red textured powder epoxy finish.
Features
- Double-action operation: lift the cover, pull the ring down
- Copper-free aluminum alloy housing
- Red textured powder epoxy finish
- 3/4 in. NPT feed-through conduit openings
- One normally open and one normally closed contact as standard
- Bilingual nameplates included to meet CSA requirements
- Internal ground screw
- CSA certified
Specifications
| Product type |
Double-action pull station |
| Material |
Aluminum |
| Color |
Red |
| Conduit openings |
3/4 in. NPT |
| Contacts |
1 NO and 1 NC |
| Marking |
Pull ring down, to operate lift door |
