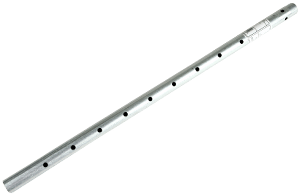

Kidde SD-T60 — 60 inch rigid metal air sampling tube for duct smoke detector housings.
A duct smoke detector reads the airstream rather than the room, so it needs a tube long enough to reach across the duct. The tube extends into the duct with its inlet holes facing the moving air, and the pressure difference between it and the shorter exhaust tube draws part of the airstream through the sensing chamber. It is ordered separately; the exhaust tube ships with the detector.
- 60 inch sampling tube, shipping weight 5.8 lb (2.6 kg)
- Installs with the inlet holes facing the airstream
- Rotates in 45 degree increments to align with airflow at any mounting angle
- Fits from the duct side or from inside the sensor compartment
- Duct air velocity as low as 100 ft/min maintains adequate flow into the sensing chamber
- Accessory to two-wire, four-wire and intelligent SuperDuct detectors and to the Optica duct detector
SD-T60 is the tube alone and carries no electronics, so it is not a detector. SD-T42 and SD-T78 are the adjacent lengths, with SD-T8 through SD-T120 completing the range.
