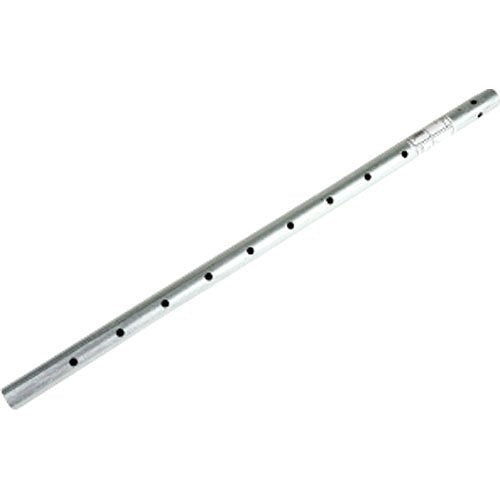

Kidde SD-T42 is a 42 in. air sampling tube for SuperDuct duct smoke detectors. It draws air from an HVAC duct into the detector's smoke chamber so the sensor can react when combustion products rise above its sensitivity setting.
The tube has to be installed with its inlet holes facing the airstream. It can be rotated in 45-degree increments, so the housing can be mounted at nearly any angle to the airflow. It can be fitted from the duct side or from inside the sensor compartment, but the exhaust tube must be installed from the duct side. Air velocity as low as 100 ft/min keeps enough air moving into the chamber.
Features
- 42 in. length
- Inlet holes face into the airstream
- Rotates in 45-degree increments for flexible mounting angles
- Installs from the duct side or from inside the sensor compartment
- Works with air velocity down to 100 ft/min
Specifications
| Product type |
Sampling tube |
| Supported device |
Duct smoke detector |
| Length |
42 in. |
| Color |
White |
