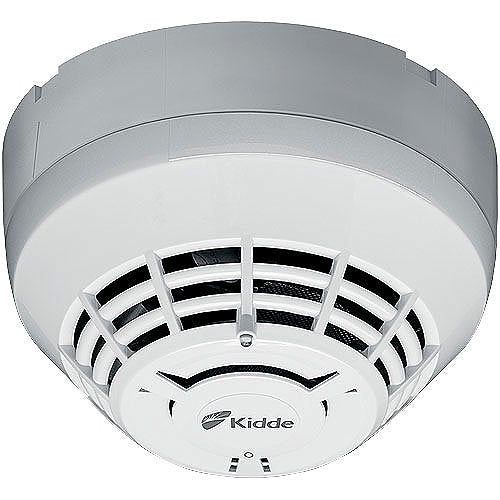

Kidde KIR-OSD — Optica Series intelligent optical smoke detector, rotary addressed, for panels with a Kidde Intelligent loop controller.
Instead of one photoelectric chamber it reads several optical sensors at two wavelengths and across multiple scattering angles, feeding filters and ratios that strip out patterns typical of nuisance sources such as cooking.
- Certified to UL 268 7th edition, UL 268A and CAN/ULC-S529, plus CSFM
- Sensitivity 0.5 to 4.36 percent per ft.; five sensitivity, twenty pre-alarm settings
- Address 1 to 125 on two rotary dials behind the head; 250 per loop
- 15.20 to 19.95 VDC; 43 µA normal and 70 µA alarm
- Air velocity 0 to 4,000 ft./min; 32 to 120 °F; bicolor status LED
- Two levels of environmental compensation and of dirty detector warning
The electronically addressed twin is KI-OSD, which draws 32 µA normal and 45 µA in alarm and carries an FM approval this rotary model does not. Bases are separate, KI-SB through KI-ABLT. The current Kidde FX Series line card puts KIR-OSD in the photoelectric smoke detector slot and lists no KIR-PD.
FAQ
Which control panels work with this detector?
Kidde Intelligent Optica Series detectors are compatible only with control panels that use a Kidde Intelligent Loop controller.
Is a base included?
No. The detector mounts on a separately ordered Kidde Intelligent base: standard (KI-SB, KI-SB4), relay (KI-RB, KI-RB4), isolator (KI-IB, KI-IB4) or sounder (KI-ABST, KI-ABDT, KI-ABLT).
What electrical boxes do the bases mount to?
North American 1-gang boxes and 3-1/2 in. or 4 in. octagon boxes 1-1/2 in. deep; the 4-inch bases (KI-SB4, KI-RB4, KI-IB4) also mount to 4 in. square boxes.
