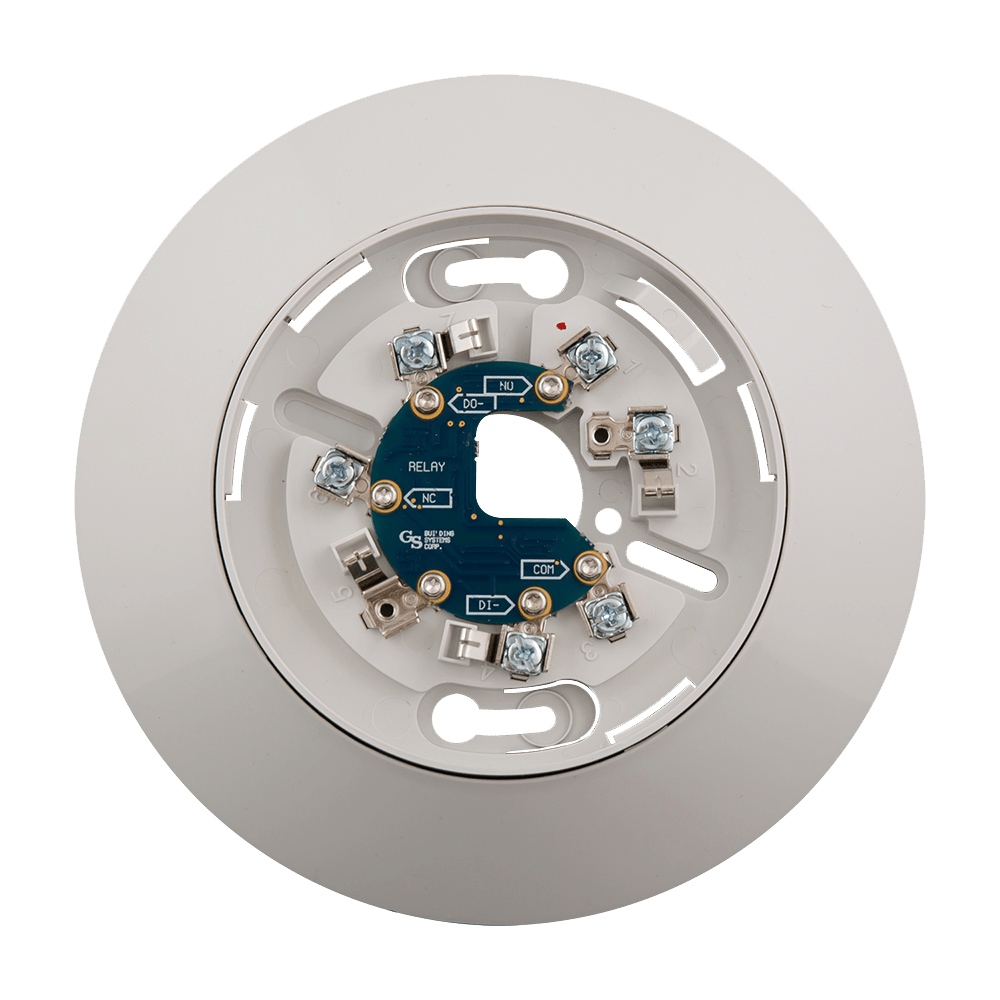

Kidde KI-RB4 is a 4 inch detector mounting base with a built-in relay, supplied with a trim skirt. The relay can be set to normally open or normally closed during installation.
The relay position is supervised so that it is not jarred out of place, and the base can act as a control relay when programmed at the control panel.
Features
- Selectable normally open or normally closed relay operation
- Dry contact rated 1 A (pilot duty) at 30 Vdc
- Supervised relay position
- Can operate as a control relay when programmed at the panel
- Does not support the GSA-LED remote LED
Specifications
| Type |
Smoke detector base with relay |
| Size |
4" |
| Color |
White |
| Height |
2.1" |
| Relay contact |
1 A (pilot duty) at 30 Vdc |
