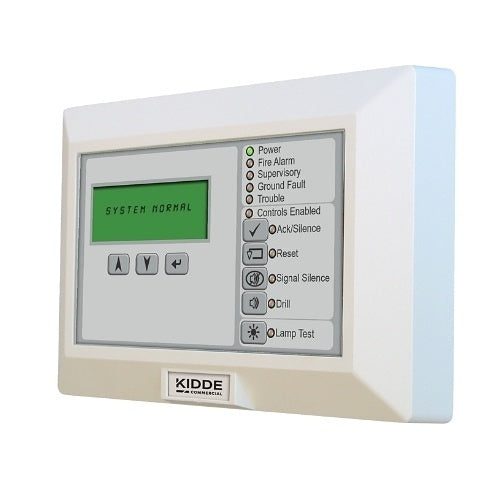

Kidde K-RLCD-C-2 — R-Series LCD text remote annunciator with common controls, English.
An R-Series annunciator repeats the panel display at a remote point such as a lobby or fire command centre, and the C in this number separates it from the family: it adds panel controls, not just indication. Data sheet K85005-0129 gives it Reset, Signal Silence and Drill alongside the Ack/Silence and Lamp Test every model has; the K-RLCD-2 has only the latter two.
- Backlit super-twist LCD, four lines of twenty characters
- Common controls: Reset, Ack/Silence, Signal Silence, Drill and Lamp Test
- Status LEDs for Power, Fire Alarm, Supervisory, Ground Fault and Trouble, plus buzzer
- 24 VDC continuous; 62 mA standby, 91 mA alarm
- RS-485 Class B/DCLB, redundant Class B/DCLB or Class A/DCLA, to 4,000 ft.
- 5-5/8 x 8-1/2 x 1-1/2 in.; mounts to a 4 in. square box on the supplied ring
K-RLCD-2 is the same display without common controls, K-RLCD-CR-2 is red and K-RLCD-CF-2 French; K-RLED-C-2 swaps the display for sixteen pairs of zone LEDs. The RKEY keyswitch and the RA-ENC enclosures are ordered separately.
