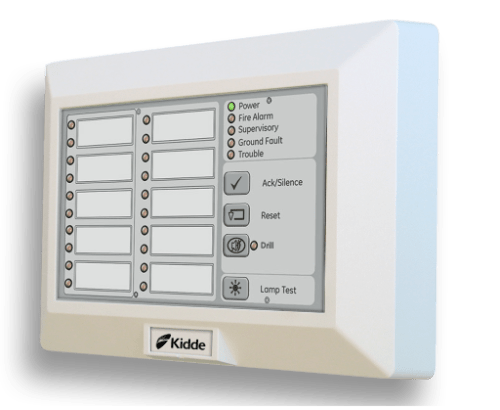

Kidde K-FSRA10C — 10-zone remote LED annunciator with system status LEDs and common controls, English, for Kidde FX-10 conventional fire alarm panels.
It repeats zone and system status of a ten-zone FX-10 panel at a remote point and adds common-control buttons, on the serial annunciator bus with 24 VDC power. Kidde states it works only with the ten-zone panel; FX-5 systems use FSRSI and FSRZI remote modules.
- Ten bi-color zone LEDs (red alarm, yellow supervisory, flashing yellow monitor) and ten yellow zone-trouble LEDs
- System LEDs: Power, Fire Alarm, Supervisory, Ground Fault and Trouble
- Buttons: Panel Silence, Reset, Signal Silence and Lamp Test
- 18.8–27.3 VDC from a listed supply not interrupted on panel reset; 17 mA standby, 98 mA alarm
- 5-5/8 × 8-1/2 × 1-1/2 in.; mounts on a North American 4 in. square box
- Serial bus up to 1,000 ft (305 m) from the panel on 18 AWG
The K-FSRA10 is the same annunciator without the Reset and Signal Silence buttons; K-FSRA10CF and K-FSRA10F are the French versions. The Edwards-branded FSRA10C is ordered for the FireShield Plus FSP1004, not the FX-10.
