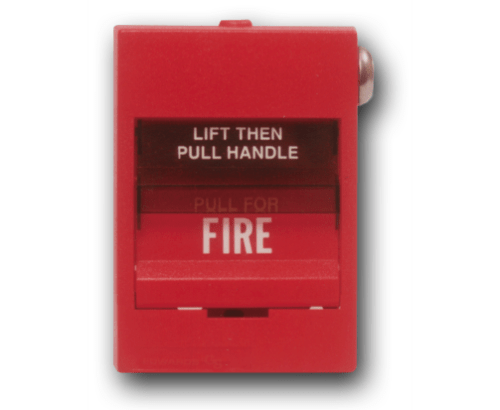

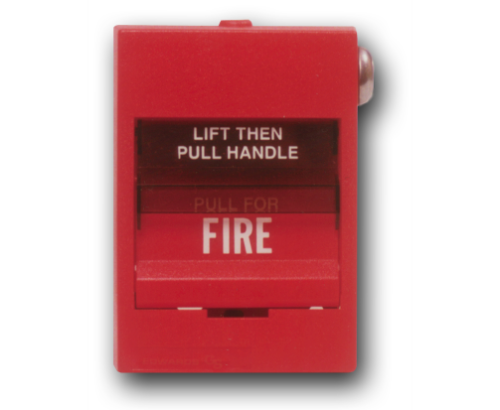

Kidde K-279B-1110 is a red double action, non-coded fire alarm pull station with six inch (150 mm) wire leads for field wiring. It is a break glass type with single-pole contacts and a tool reset.
The station is made of Lexan. For semi-flush mounting use a four inch square box with a single gang plaster cover and minimum depth of 2-1/4 inches (57 mm), or for surface mounting use the K-276B-RSB surface back box.
Features
- Double action operation, lift then pull handle
- Break glass operation
- Single pole contacts, open circuit
- Wire leads for field connections
- Tool reset
- Surface or semi-flush mounting
- Lexan construction, red finish
Specifications
| Type |
Double action pull station |
| Contacts |
Single pole, open circuit |
| Connections |
Wire leads |
| Reset |
Tool |
| Material |
Lexan |
| Color |
Red |
| Gang type |
Single gang |
| Standards |
UL 38, FM |
