Name: Kidde FX-SLC2 Expansion Module Two 250-device Loops 500 Devices Total.
Brand: Kidde
SKU: FX-SLC2
Price: 757.1 USD
Availability: InStock

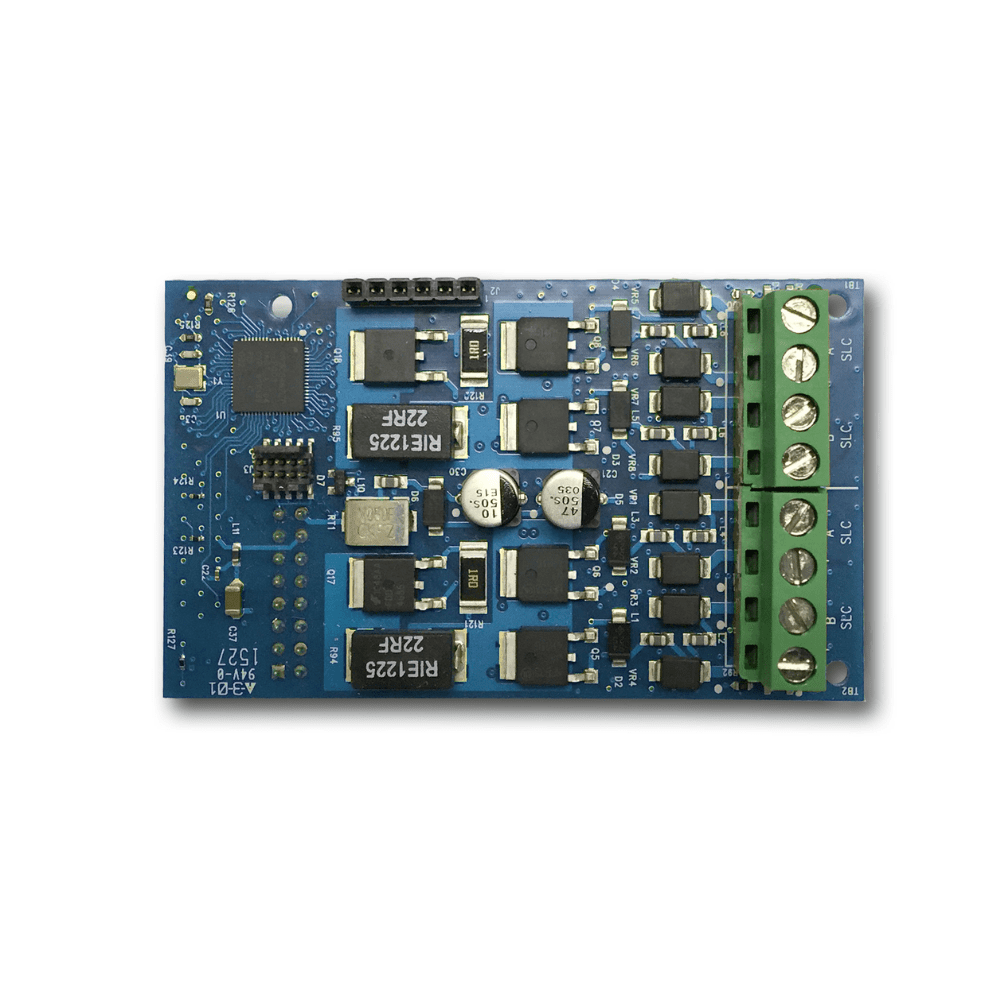

Kidde FX-SLC2 Expansion Module Two 250-device Loops 500 Devices Total., product photo

Roll over image to zoom in Click on image to zoom

Category: Expander Modules
Brand: Kidde
SKU: FX-SLC2
UPC: 793016046086
Weight: 0.2 lb

SLC CARD,DUAL,500 PT

Key Features

Optional Ethernet port (SA-ETH) for central monitoring service, programming, diagnostics, and a variety of system reports
Two programmable switches with LEDs and custom labeling
Supports horn silence over two wires, and UL 1971-compliant strobe synchronization
ConnectedSafety+ integration via the KCG1 cellular communicator, enabling access to live system updates, real-time notifications, and on-demand reporting of central monitoring station signal data
Class B or Class A wiring
Ground fault detection by module
Optional multi-protocol Field Server Bridge for interface to 3rd party Building Management Systems
Supports up to eight serial annunciators, (LCD, LED-only, and graphic interface)
Can use existing wiring for most retrofit applications
Upload/download remotely or locally

Specifications

Maximum T-taps	63
Maximum T-taps/loop	124
Notification appliance circuits	2 Class B (Style Y), Class A (Style Z) optional
Primary power	120 VAC, 60 Hz, 1.3 A max.
Base panel current standby	155 mA 172 mA
Base panel current alarm	204 mA 267 mA
Input zones	16 max. 32 max.
Remote annunciator	8 drops max., RS-485 Class B, Class A is optional
Data line length	4,000 ft. (1,219 m)
Aux power	1: 500 mA, 24 VDC
Output	28.3 to 21.9 VDC, special application
Loop circuit Maximum loop resistance	66 Ω
Maximum loop capacitance	0.5 µF
Communication line voltage	Maximum 20.6 V peak-to-

Documents & Downloads

K85005-0137 -- FX Series Intelligent Fire Alarm Systems (Data Sheet)
