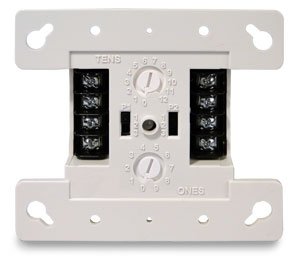

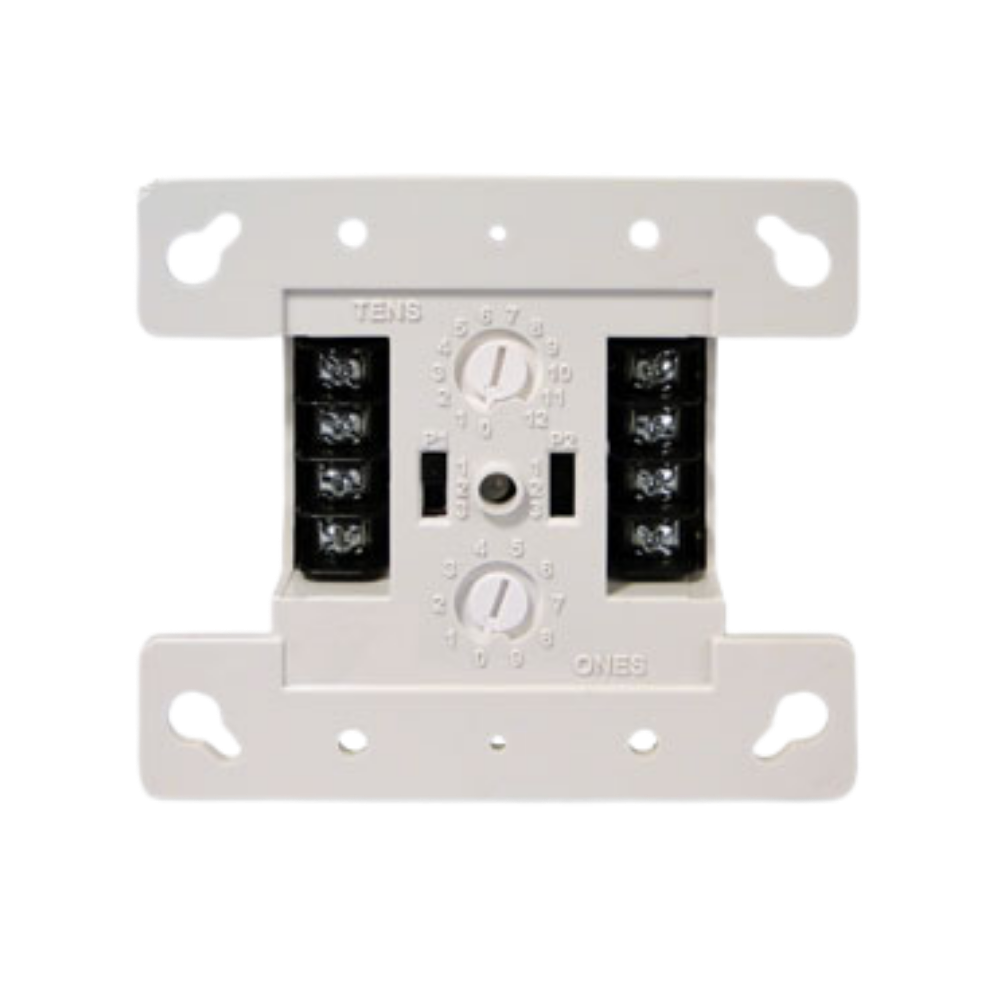

Kidde FX-IDCWS is an analog dual input waterflow supervisory module. It connects normally open waterflow alarm and supervisory initiating device circuits (IDCs) to a Kidde FX Series control panel, and it is built for Class B circuit operation.
Each module is addressed with the two rotary switches on its front. It occupies two consecutive addresses: the second one is assigned automatically at one number above the value dialed in. The waterflow input can be set to a latching, delayed alarm mode that is meant only for non-retarded waterflow switches and produces an alarm signal after a 16-second delay. The supervisory input offers nonlatching and latching modes.
Features
- Takes waterflow alarm and supervisory circuits from normally open dry contacts
- Class B initiating device circuit operation
- Address set with two front-panel rotary switches, using two consecutive addresses
- Waterflow alarm latching delayed mode with a 16-second delay, for non-retarded waterflow alarm switches
- Supervisory nonlatching mode for the US marketplace and latching mode for the Canadian marketplace
- Works with Kidde FX Series control panels
Specifications
| Product type |
Waterflow supervisory module |
| Supported device |
Control panel |
| Compatibility |
Kidde FX Series control panels |
| Operating temperature |
32 to 120.2 °F (0 to 49 °C) |
