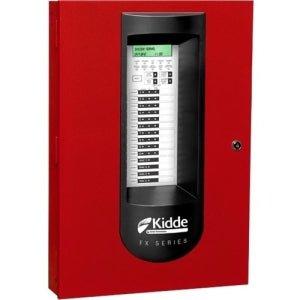

Kidde FX-10R — ten-zone conventional fire alarm control panel, red, certified to ANSI/UL 864 10th Edition.
A conventional panel senses by circuit, not by device, so each initiating device circuit reports as one zone. It is programmed from the front panel and lets pairs of IDCs or NACs be combined into single Class A circuits, so one board covers both wiring classes. Each IDC can be set to alarm, waterflow, combination waterflow and supervisory, supervisory, monitor, signal silence, drill or cross-zoning.
- Up to 10 Class B IDCs or up to 5 Class A
- Up to 4 Class B NACs or 2 Class A, 24 Vfwr, 2.0 A each and 7.0 A total
- 120 Vac 60 Hz input at 2.2 A, 7.5 A total supply, 24 Vdc auxiliary at 0.5 A max
- Base panel draw 128 mA standby, 242 mA alarm
- Charges up to two 24 Ah sealed lead acid batteries, 18 Ah maximum inside the cabinet
- 32 to 120 °F; UL 864 file S3000, ULC-S527, CSFM and FDNY
FX-10RD is the same panel with the upload and download DACT built in, FX-10RF is the French Canada build, and the five-zone pair is FX-5R and FX-5RD. F-TRIM10R, the semi-flush trim ring, is ordered separately.
Documents
FAQ
Does the FX-10R include a dialer?
No. The FX-10RD is the same panel with the upload/download DACT built in.
Can it run Class A circuits?
Yes. Pairs of IDCs or NACs combine into single Class A circuits, for up to 5 Class A IDCs and 2 Class A NACs.
What batteries does it support?
Up to two 24 Ah sealed lead acid batteries, with 18 Ah maximum inside the cabinet. Use an external battery cabinet for larger batteries.
Can it be semi-flush mounted?
Yes, with the F-TRIM10R semi-flush trim ring, ordered separately.
