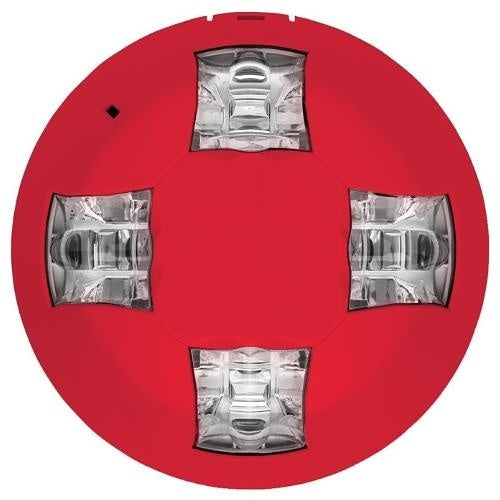

Kidde EGCVHRN is a Genesis LED high candela ceiling-mount strobe with a red housing and no marking. It is part of the Genesis LED EGCVH Series and is UL 1971 listed for indoor wall or ceiling public-mode visible notification. Light output is field selectable at 135, 150, 177 or 185 candela, with the same current draw at every setting.
Specifications
| Light output |
135, 150, 177 or 185 cd, selectable |
| Operating voltage |
16 to 33 VDC, 16 to 33 VFWR |
| Operating current |
53 mA at 16-33 VDC, 68 mA at 16-33 VFWR (all candela settings) |
| Flash rate |
1 flash per second approx. |
| Synchronization |
20 ohm max. between any two devices |
| Wire size |
12 to 18 AWG (0.75 to 2.50 mm²) |
| Dimensions |
6.8 in. diameter x 1.82 in. deep (17.27 x 4.62 cm) |
| Electrical boxes |
2-gang, 4 in. square, 4 in. octagon with GOCT adapter; at least 1-1/2 in. deep |
| Housing |
Red (RAL 3013), no marking |
| Operating environment |
32 to 122 °F (0 to 50 °C), 0 to 93% RH non-condensing |
| Listing |
UL 1971, indoor wall or ceiling public mode |
Compatibility and installation notes
- Mounts on the GRSW room-side wiring plate, which is required and included with the device.
- Synchronization sources listed include CC1S/MCC1S signal modules, Universal Class A/B modules, FXNAC, booster and auxiliary power supplies, and intelligent and conventional control panels (some modules limited to 25 appliances).
- LED devices may be mixed with legacy xenon strobes on the same circuit and in the same field of view.
- Optional EGCTR (red) and EGCTW (white) trim plates and 27193-21 red two-gang surface box are available.
- Candela setting is changed under the cover and remains visible through a side window.
Related models
Documents
Specifications from Kidde Commercial data sheet K85001-1051, Issue 1.1 (08-11-25). Manufacturer specifications are subject to change.
