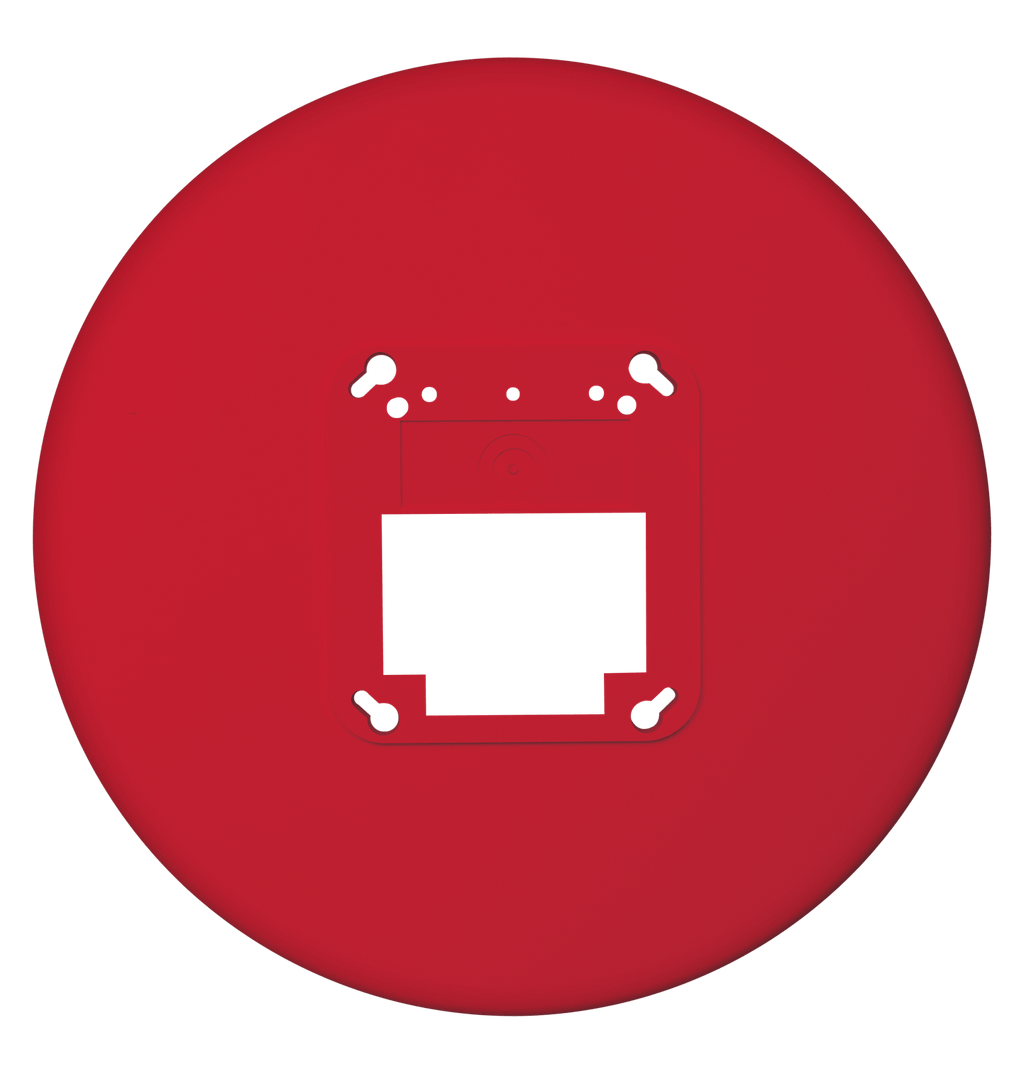

Kidde EGCTR — red trim plate for Genesis LED EGC Series ceiling notification appliances.
Reading the Kidde syntax character by character: EGC is the Genesis ceiling mount appliance family, T is the trim plate, and the final R is the color. The Kidde ordering table lists EGCTR as trim plate, EGC Series, red, so the color comes from the suffix, not assumption. The plate covers an oversized ceiling opening, typically where a larger legacy appliance was removed.
- 10.6 in. (26.92 cm) diameter × 0.3 in. (0.76 cm) deep
- Trims Genesis LED EGC ceiling horns, strobes and horn-strobes, 6.8 in. diameter × 1.82 in. deep
- Suits the appliance boxes: 1-gang, 2-gang, 4 in. octagon, 4 in. square, at least 1-1/2 in. deep
- Fits between the box and the required GP10 wiring plate, held by the wiring plate screws
- Ordered separately; not supplied with the appliance
- Passive plate: no wiring, terminals or current draw
Watch the last character. EGCTW is the identical plate in white. Where a surface box is wanted instead, Kidde lists two-gang boxes 27193-21 red and 27193-26 white.
