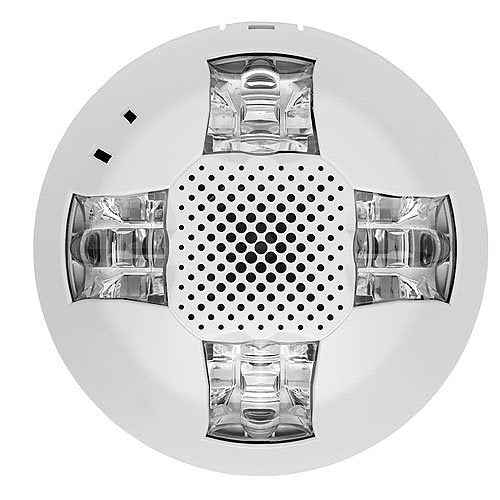

Kidde EGCAVWN — Genesis LED EGC Series ceiling-mount horn strobe in a white housing with no marking.
Pairs a horn with an LED strobe for fire alarm notification appliance circuits. The horn is factory set to a three-pulse temporal pattern at high output. A slide switch selects steady tone or low output, which is about 6 dBA quieter. The GP10 or GSRW-10 room-side wiring plate is required, and the Kidde version includes it.
- Field-selectable 15, 30, 75 or 115 cd; UL 1971 certified for indoor ceiling mounting
- 86 dBA high or 80 dBA low reverberant (UL 464); 92 or 86 dBA anechoic (CAN/ULC-S525)
- 16–33 VDC: 60 mA on high, 50 mA on low; 16–33 VFWR: 75 mA high, 60 mA low
- 6.8 in. diameter × 1.82 in. deep; fits 1-gang, 2-gang, 4 in. octagon or 4 in. square boxes at least 1-1/2 in. deep
- 20 Ω maximum sync wiring between any two devices; operating range 32–122 °F
Siblings: EGCAVWF (white, FIRE), EGCAVRN (red, plain) and EGCAVRF (red, FIRE). EGCVWN is the strobe-only version. Edwards catalogues the matching horn strobe as GCAVWN and sells its wiring plate separately.
