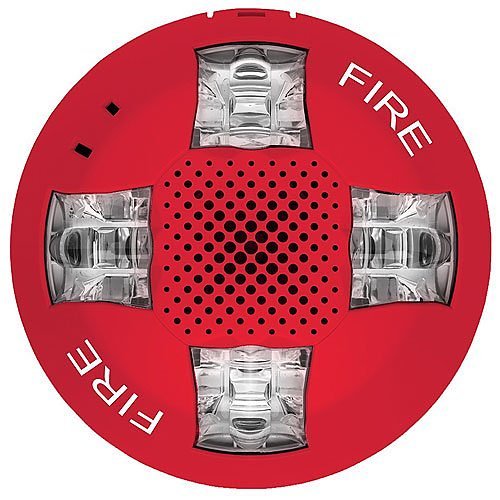

Kidde EGCAVRF — Genesis LED EGC Series ceiling horn-strobe, red housing with FIRE marking.
The model-number syntax block decodes it: EGC is the Genesis ceiling-mount series, AV horn-strobe, R red, F FIRE marking. Candela and tone are slide switches under the cover, and the chosen candela stays visible through a small window, so output changes without removing the device.
- Field-selectable 15, 30, 75 or 115 cd; about one flash per second
- 16 to 33 VDC or VFWR
- Current 50 mA DC / 60 mA FWR on low dB, 60 / 75 mA on high, at every candela setting
- Sound 80 dBA low, 86 dBA high, reverberant per UL 464; 86 and 92 anechoic
- Constant or three-pulse temporal tone; low setting cuts about 6 dBA
- 6.8 × 1.82 in.; fits 1-gang, 2-gang, 4 in. octagon and 4 in. square boxes
- GP10 room side wiring plate required and included; 20 Ω max between synchronised devices
EGCAVRN is the same red horn-strobe without FIRE marking and EGCAVWF the white one; EGCVRF is strobe only and EGCARF horn only. Edwards catalogues the identical appliance as GCAVRF — the series letters differ by brand, GC on Edwards against EGC on Kidde.
