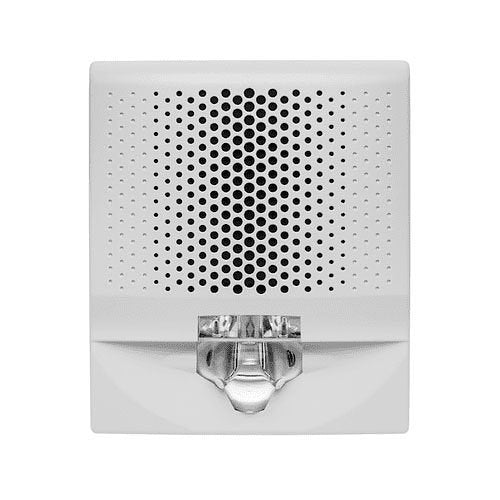

Kidde EG4AVWF Genesis EG4 Wall Horn Strobe, 15-110cd, White, FIRE Marking
Room Side Wiring Plate Included
Key Features
- More devices per circuit
- Ability to use lower gauge wire
- Longer wire runs
- Fewer booster power supplies
- High efficiency optics
- Selectable 15, 30, 75, or 110 cd light output
- LED devices may be mixed with legacy Xenon strobes Efficient Audible Output
- Selectable high or low dB horn output
- Selectable temporal or steady horn output
- Improved audio frequency range for better wall penetration Low-profile Design
Specifications
| Operating voltage |
16 to 33 VDC, 16 to 33 VFWR |
| Light output |
15, 30, 75, or 110 candela |
| Strobe flash rate |
1 fps (flash per second) approx. |
| Synchronization |
20 Ω max. between any two devices. T o determine allowed wire resistance, refer to these specifications, and the |
| Wire size |
12 to 18 AWG (0.75 to 2.50 mm2) |
| Strobe-to-box center offset |
-1.70 inches (-4.32 cm) |
| Storage T emperature |
-40 to 158 F (-40 to 70 C) |
