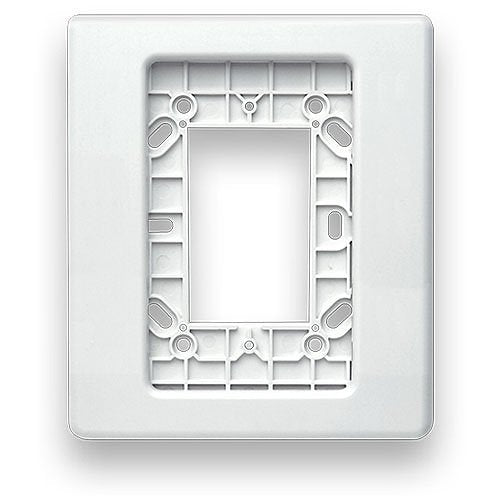

Kidde EG1TW — white trim ring for Genesis LED EG1 Series wall notification appliances.
EG1 horns, strobes and horn-strobes fit a standard one-gang box with no trim ring at all, so the EG1TW exists to close up an oversized or irregular opening. Kidde states that using a trim ring is optional except when the appliance is installed on an electrical box greater than three inches wide, where it is required. It installs as a backplate: the ring goes on first, the appliance mounts through it, and the snap-on appliance cover hides every screw.
- Trim ring, EG1 Series, white; EG1TR is the red version
- Dimensions 5 × 5-7/8 × 9/16 in. (12.7 × 14.92 × 1.43 cm)
- Accommodates one-gang, two-gang, 4-inch octagon and 4-inch square boxes, each at least 1-1/2 in. deep
- Suits EG1A horns, EG1V strobes and EG1AV horn-strobes, which measure 3 × 4-5/8 × 1-1/8 in.
Order EG1TR if you need red. The larger Genesis EG4 wall appliances take their own EG4TW and EG4TR trim plates, which are a different size and do not interchange.
