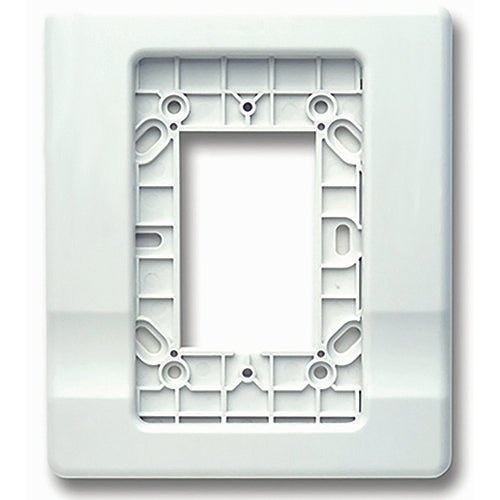

Kidde EG1T — white Genesis trim plate for two-gang or 4" square electrical boxes, supplied with no lettering.
Genesis horns, strobes and horn-strobes fit a standard one-gang box and need no trim plate there. The EG1T exists for the retrofit case: when a device is mounted over an oversized opening left by earlier equipment, the plate covers the gap and gives a finished edge with no visible mounting screws.
- Listed by Kidde as Genesis Trim Plate, for two-gang or 4" square boxes
- White housing colour, no marking
- Mounting accessory only, with no electrical or electronic parts
- For the low-profile Genesis signal range, which protrudes less than one inch from the wall
- Appears in the Kidde Genesis strobe and horn catalogue under Trim Plates
The near neighbours are easy to order by mistake: EG1RT is the red equivalent, while EG1T-FIRE and EG1RT-FIRE are the same plates carrying FIRE lettering. Do not substitute the 27193-16 or 27193-11 one-gang surface-mount boxes, which stand the device off the wall rather than trim an oversized opening.
