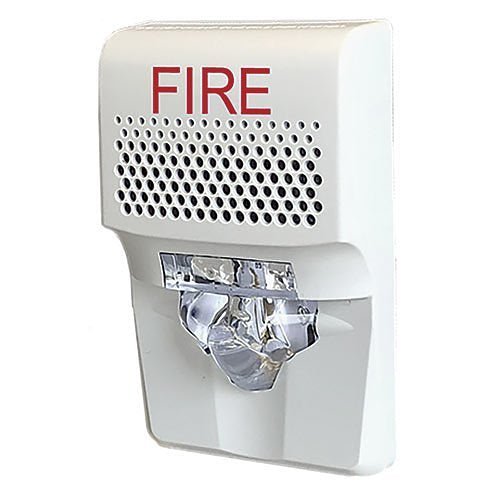

Kidde EG1AVWF Genesis LED EG1 Compact Wall Horn Strobe, 15-75cd, White, FIRE Marking
Key Features
- Ultra low device current consumption
- High efficiency optics
- Selectable 15, 30, or 75 cd light output
- LED devices may be mixed with legacy Xenon strobes Efficient Audible Output
- Selectable high or low dB horn output
- Selectable temporal or steady horn output
- Improved audio frequency range for better wall penetration Low-profile Design
- Compact design—single gang mounting
- Ultra-slim—protrudes about 1" from the mounting surface
- Attractive appearance—no visible mounting screws Multiple Cover Options
Specifications
| Operating voltage |
16 to 33 VDC, 16 to 33 VFWR |
| Light output |
15, 30, or 75 candela |
| Strobe flash rate |
1 fps (flash per second) approx. |
| Synchronization |
20 Ω max. between any two devices. |
| Wire size |
12 to 18 AWG (0.75 to 2.50 mm2) |
Documents & Downloads
FAQ
What electrical box does the EG1AVWF mount on?
A 1-gang, 2-gang, 4 in. octagon or 4 in. square box at least 1-1/2 in. deep. Boxes wider than three inches require an EG1TW (white) trim ring.
How loud is the horn?
85 dBA reverberant per UL 464 on the high setting and 80 dBA on low, with constant or T3 temporal patterns.
Can it be synchronized?
Yes. Kidde lists CC Series signal modules, booster and auxiliary power supplies, and intelligent and conventional control panels as synchronization sources, with a maximum of 20 ohms between any two devices.
Can it be mounted on the ceiling?
No. Genesis LED EG1 Series strobes are certified for indoor wall-mounted use; only the horn-only models may be ceiling-mounted.
