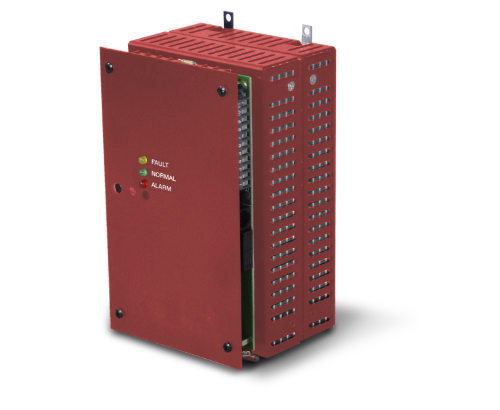

Kidde ANS50XR is a 50 watt audio expander panel in a red cabinet for the Kidde Commercial ANS Series audio notification (voice evacuation) system. Expander panels add amplifier power to an ANS25, ANS50 or ANS100 system and include an audio amplifier, temporal pattern alarm tone, power supply and battery charger. Expanders can be combined to reach up to 2,000 watts of audio power in one system.
Specifications
| Output power |
50 W |
| Output voltage |
25 or 70 Vrms, selectable |
| Output protection |
Power-limited, open and short circuit protected |
| Input voltage |
120 VAC, 60 Hz |
| Input current (50 W model) |
0.5 A at 120 VAC |
| Frequency response (50 W model) |
400 to 4000 Hz |
| Batteries |
Two 12 V gel cells in series; 24 V, 7 Ah minimum to 24 V, 18 Ah maximum (50 W model) |
| Battery standby |
24 to 60 hours standby, 15 minutes alarm |
| Battery charging current |
800 mA |
| Dimensions |
Rough-in 14.5 x 18 x 4 in. (368 x 457 x 102 mm); finished door 16.25 x 19.5 in. (413 x 495 mm) |
| Cabinet color |
Red |
| Shipping weight |
32 lb (14.5 kg) |
Compatibility and installation notes
- Used to increase the output power of ANS25, ANS50 or ANS100 voice evacuation systems.
- Expander units connect to the main ANS panel; the data sheet wiring shows a maximum of 15 cascaded units, mounted in the same cabinet or room with connecting wires in conduit.
- Speaker circuits are field selectable for 25 or 70 Vrms operation.
- The electrical values above are the data sheet values for the 50 W ANS model.
Related models
- ANS50XG: 50 W audio expander panel, gray cabinet
- ANS25XR / ANS100XR: 25 W and 100 W expander panels, red cabinet
- ANS50MDR2: 50 W audio notification panel, red cabinet
- ANSBKUP: backup amplifier switching module
Documents
Specifications from Kidde Commercial data sheet K85001-0587, Issue 2.1. Manufacturer specifications are subject to change.
