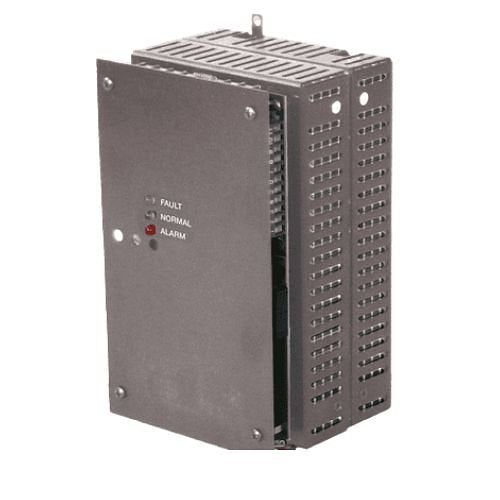

ANS25A is a 25 watt expander module for the ANS audio notification (voice evacuation) system line documented under the EDWARDS brand. It increases the output power of an ANS25, ANS50 or ANS100 system. As a module it has no cabinet and is intended to be mounted in a UL Listed enclosure.
Specifications
| Type |
Audio expander module (no cabinet) |
| Output power |
25 W |
| Expands |
ANS25, ANS50 or ANS100 voice evacuation systems |
| Interconnection |
14-pin ribbon cable (factory supplied) or hard-wired, #20 AWG minimum |
| Cascading |
Up to 15 units |
| System capacity |
Expanders may be ganged in any combination for up to 2,000 W of audio power |
| Shipping weight |
5 lb (2.3 kg) |
Compatibility and installation notes
- Mount in a UL Listed enclosure; the module is supplied without a cabinet.
- All cascaded units must be mounted in the same cabinet or in the same room, with all connecting wires run in conduit.
- Expander modules can be combined with ANS50A and ANS100A modules and with ANS expander panels.
Related models
- ANS50A 50 Watt expander module
- ANS100A 100 Watt expander module
- ANS25AMD2 25 Watt audio notification module with DMR and microphone
- ANS25XR / ANS25XG 25 Watt audio expander panels (red / gray cabinet)
Documents
Specifications from EDWARDS data sheet E85001-0587, Issue 2.1. Manufacturer specifications are subject to change.
