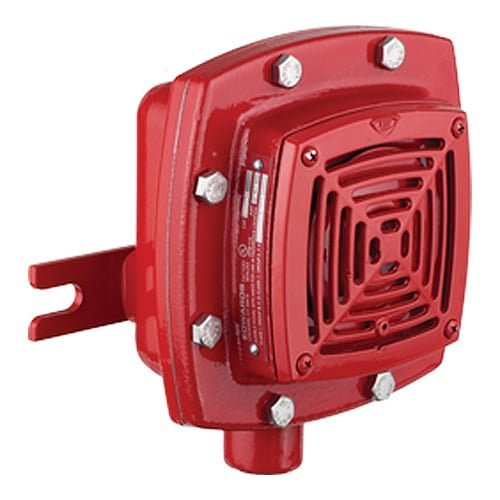

889D-AW is a 24 VDC hazardous location horn from the EDWARDS 888D/889D series. It is a diode-polarized, heavy-duty, high-decibel vibrating horn intended for life safety notification appliance circuits in hazardous (classified) locations. The 120 VAC version is the 888D-N5.
Specifications
| Rated voltage |
24 VDC |
| Alarm current |
0.16 A |
| Sound output |
100 dBA at 10 ft (3 m), measured in an anechoic chamber, A-weighted |
| Type |
Diode-polarized vibrating horn |
| Finish |
Corrosion resistant heat flowed epoxy, red |
| Hazardous locations (UL certified) |
Class I, Div. 1 and 2, Groups B, C, D; Class II, Div. 1 and 2, Groups E, F, G; Class III, Div. 1 and 2 |
| Connection |
Wire leads to the notification appliance circuit |
| Supplied with |
Sealing fitting for an NPT nipple |
Compatibility and installation notes
- Mounts to any solid surface using two bolts (supplied by others).
- Diode polarization allows use on a supervised notification appliance circuit; observe polarity.
- Install per the hazardous location wiring methods required for the classified area.
Related models
- 888D-N5 Hazardous location horn, 120 VAC
Documents
Specifications from EDWARDS data sheet E85001-0397, Issue 1.1. Manufacturer specifications are subject to change.
FAQ
Which hazardous locations is the 889D-AW rated for?
Class I, Division 1 and 2, Groups B, C and D; Class II, Division 1 and 2, Groups E, F and G; and Class III, Division 1 and 2.
How is it connected and mounted?
It mounts to any solid surface with two bolts (by others) and comes with a sealing fitting for a 3/4 in. -14 NPT nipple and wire leads for the notification appliance circuit.
Can it be used on a supervised NAC?
Yes. The horn is diode polarized, so observe polarity when wiring.
Is there a 120 VAC version?
Yes, the 888D-N5, which draws 0.13 A.
