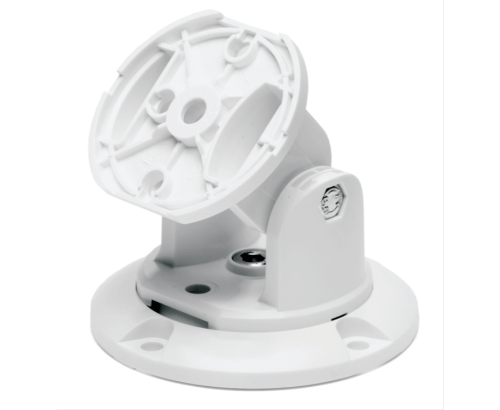

Fireray 3000-201 — adjustment bracket for the Fireray 3000 end-to-end infrared optical beam smoke detector.
The Fireray 3000 protects large, high-ceilinged spaces with an infrared beam thrown between separate transmitter and receiver heads, so every head must be aimed accurately along the beam path. This bracket carries a head and gives 360° of rotation plus 180° of adjustment, letting an installer aim off a wall, soffit or column that is not square to the beam. FFE also lists it for use with Prism Adaptor Plates.
- 360° rotation plus 180° adjustment
- Catalogued by FFE (Fire Fighting Enterprises) as the adjustment bracket for the Fireray 3000
- Host detector range 16.5 ft to 393 ft (5 m to 120 m), 12 to 36 VDC, -4°F to 131°F
- Other Fireray 3000 mounting parts: 3000-202, 3000-203, 3000-209, 3000-210 and the 1000-018 wire cage
Check the detector model first — the Fireray 5000 bracket is 5000-201, which FFE lists with 360° rotation but only 140° of adjustment. Prisms and prism adaptor plates are separate orders.
