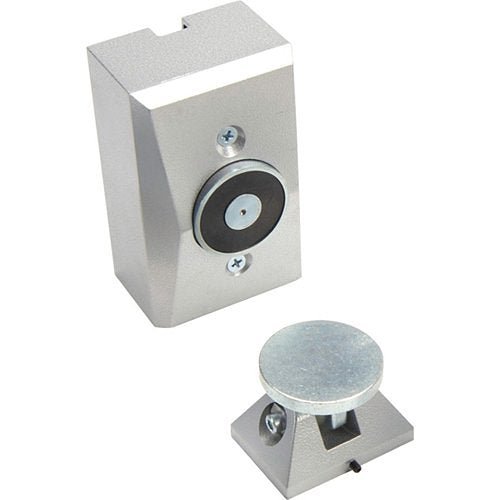

Kidde 1508-AQN5 is a surface wall mounted electromagnetic door holder-release. It holds a fire or smoke door open while energized and releases it to close when power is removed by a fire alarm relay or other switch, helping to check the spread of smoke and flames.
Operation is fail-safe: if power fails, the door is released automatically, and it can still be opened or closed by hand at any time. The units have no moving parts, are completely silent and need no maintenance.
Specifications
| Mounting |
Surface wall mount on the supplied surface adaptor housing (junction box) |
| Voltage |
24 VAC 60 Hz, 24 VDC or 120 VAC 60 Hz |
| Holding force |
Approx. 15 to 25 lbf (66 to 111 N); 25 lbf nominal |
| Projection |
6.37 in. min. to 8 in. max. (161.8 to 203.2 mm) |
| Contact plate |
Adjustable swivel plate with shock absorbing nylon ball |
| Finish |
Aluminum color, baked polyester powder paint |
| Shipping weight |
3.0 lb (1.36 kg) |
Installation notes
- The wall section houses the electromagnet and the contact plate attaches to the door.
- Catch plate extension assemblies 1500-1 (1.5 in.), 1500-2 (2.5 in.), 1500-7 (5.25 to 7.5 in.) and 1500-12 (7.5 to 12 in.) are available.
- The CS2595-5 short replacement armature fits the 1508 door holder.
- Install in accordance with local building codes and standards; the unit will not hold without electrical power.
Related models
- 1504-AQN5 flush wall mount, long catch plate
- 1505-AQN5 flush wall mount, short catch plate
- 1509-AQN5 completely flush wall mount
- 1501-AQN5 floor mount, single door
Documents
FAQ
What voltage does the 1508-AQN5 use?
Kidde lists it for 24 VAC 60 Hz, 24 VDC or 120 VAC 60 Hz operation.
What happens if power fails?
The door is released automatically; the holder is fail-safe and the door can always be opened or closed manually.
How strong is it?
Holding force is approximately 15 to 25 lbf (66 to 111 N), 25 lbf nominal.
What if the door stops too far from the wall?
Catch plate extension assemblies from 1.5 in. up to 12 in. (1500-1, 1500-2, 1500-7, 1500-12) are available.
