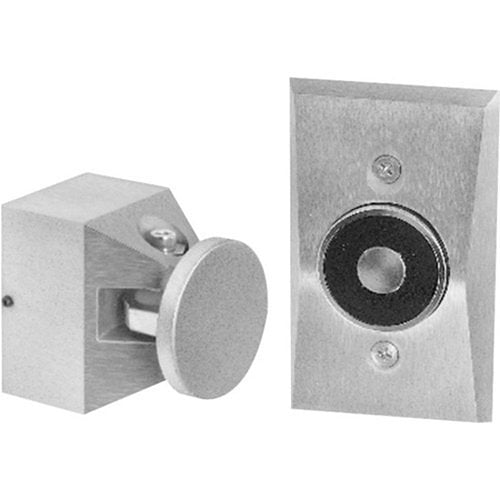

Kidde 1504-AQN5 — flush wall mounted electromagnetic door holder with the long catch plate.
A door holder releases a self-closing door so it can swing shut and check the spread of smoke and flame. The wall unit houses the electromagnet; the catch plate fastens to the door on a nylon swivel ball that seats at any door angle. Operation is fail-safe, so loss of power drops the door automatically.
- Supply 24 Vac 60 Hz, 24 Vdc or 120 Vac 60 Hz, at 0.015 A
- Kidde rates the series at 15 to 25 lbf (66 to 111 N), 25 lbf nominal
- Catch plate projects 2-5/8 in. (67 mm), against 1-5/8 in. on the 1505
- Faceplate 4-1/2 in. × 2-3/4 in., standing 13/16 in. (21 mm) proud
- Mounts on a standard single gang 2 × 4 in. outlet box, not supplied
- Catch plate end pieces included; no moving parts and no maintenance
The 1505-AQN5 is the same flush wall unit with the short catch plate, and that length is the only difference — which is why the 1504 alone takes the long CS2598-5 armature where the 1501, 1502, 1505, 1508 and 1509 take the short CS2595-5. The 1508-AQN5 is surface mounted and the 1509-AQN5 completely flush.
Documents
FAQ
What voltages does the 1504-AQN5 accept?
It operates on 24 VAC 60 Hz, 24 VDC or 120 VAC 60 Hz, drawing 0.015 A.
What box does it mount on?
Flush wall models mount on a standard single-gang (2 × 4 in.) outlet box for concealed wiring. The box is not supplied.
What happens if power fails?
Operation is fail-safe. Loss of power releases the door automatically, and the door can still be opened or closed by hand at any time.
What is the difference between the 1504-AQN5 and 1505-AQN5?
Both are flush wall mounted holders. The 1504-AQN5 has the long catch plate and the 1505-AQN5 the short one.
