Kidde 1501-AQN5 is a floor mounted electromagnetic door holder for a single door, for 24 VAC, 24 VDC or 120 VAC. It holds a door open while energized; when a fire alarm system relay or other switch de-energizes it, the door is released to close, checking the spread of smoke and flames.

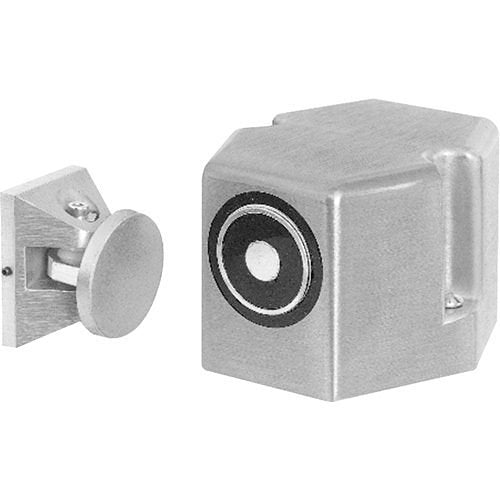

The floor section houses the electromagnet and the contact plate attaches to the door. A shock-absorbing nylon swivel ball lets the contact plate adjust to any door angle. The housing has an aluminum color, baked polyester powder paint finish. Operation is fail-safe: if power fails, the door is released automatically and can still be opened or closed by hand. The unit has no moving parts and needs no maintenance.
Specifications
| Style |
Floor mounted, single door |
| Voltage |
24 VAC 60 Hz, 24 VDC, 120 VAC 60 Hz |
| Holding force |
25 lbf (111 N) nominal |
| Contact plate |
Adjustable swivel with nylon ball |
| Finish |
Aluminum color baked polyester powder paint |
| Ship weight |
5.4 lb (2.45 kg) |
Installation notes
- Floor plate and floor housing, installed with the gaskets provided, form a weatherproof electrical junction box
- Incoming conduit connects directly into the floor plate
- Install and use in accordance with local building codes and standards
- The unit will not hold the door without electrical power
Related models
- 1502-AQN5: floor mounted, double door
- 1504-AQN5 / 1505-AQN5: flush wall mounted, long / short catch plate
- 1508-AQN5: surface wall mounted
- 1509-AQN5: completely flush wall mounted
- 1500-1, 1500-2, 1500-7, 1500-12: catch plate extension assemblies
FAQ
What voltages does the 1501-AQN5 accept?
Kidde lists 24 VAC 60 Hz, 24 VDC and 120 VAC 60 Hz operation for the AQN5 door holders.
What happens if power fails?
Operation is fail-safe: if power fails, the door is released automatically, and it can still be opened or closed manually at any time.
How is it wired?
The floor plate and floor housing, installed with the gaskets provided, form a weatherproof electrical junction box, and incoming conduit connects directly into the floor plate.
Is there a version for two doors?
Yes. The 1502-AQN5 is the floor mounted double door version with two magnet faces for doors back to back.
