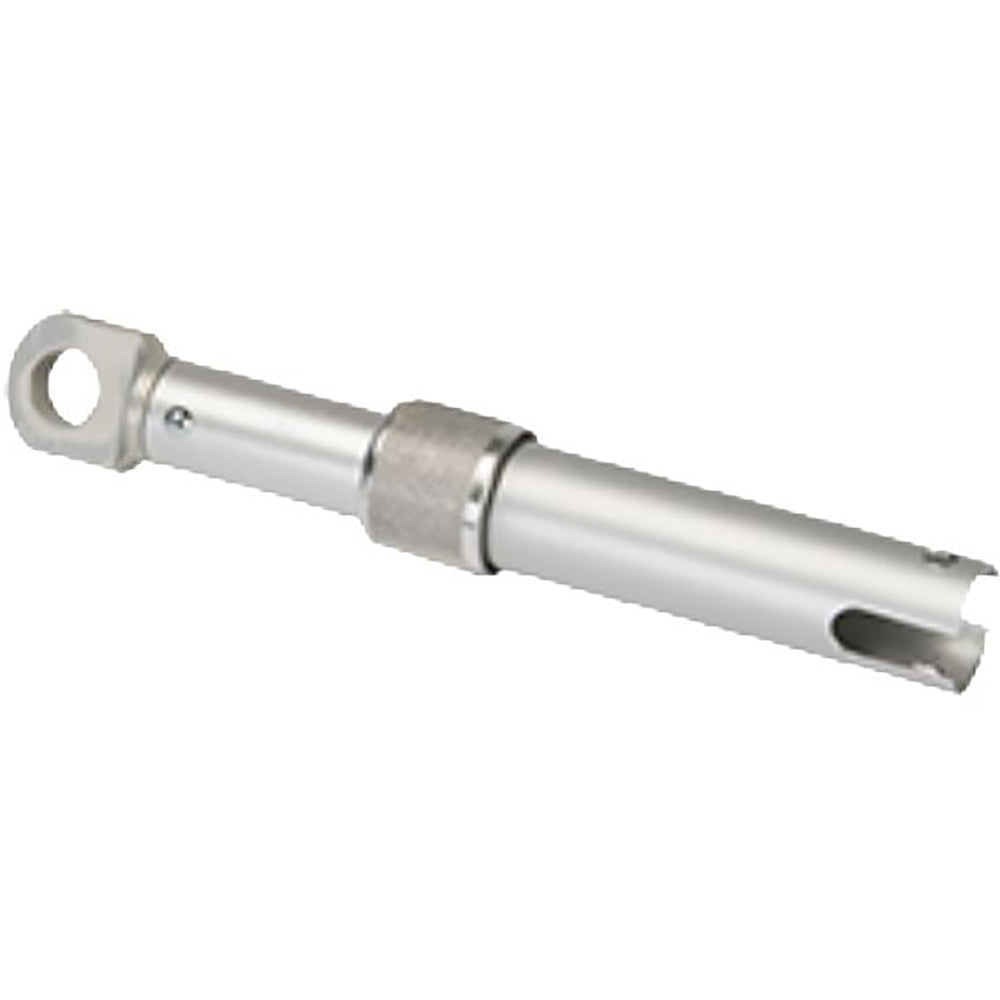

Kidde 1500-7 (also searched as 1500/7) is a catch plate extension assembly for Kidde electromagnetic door holders, catalogued as 5.25 to 7.5 in.
A Kidde door holder keeps a door open by holding the contact (catch) plate mounted on the door, and releases it when power is removed. The 1500-7 extends that catch plate. Kidde states that only the extension rods are included: the end pieces come with the door holders or can be ordered separately.
Features
- Kidde ordering description: catch plate extension assembly (5.25 to 7.5 inches)
- Dimension drawing: 6.37 in. min. to 8 in. max. (161.8 to 203.2 mm) as drawn
- Extension rods only; end pieces not included
- Ship weight 0.5 lb (0.23 kg)
- Listed on the Kidde sheet for the 1501, 1502, 1504, 1505, 1508 and 1509-AQN5 holders, without naming which models it fits
Specifications
| Model |
Kidde 1500-7 (1500/7) |
| Type |
Catch plate extension assembly for door holders |
| Catalogued length |
5.25 to 7.5 in. |
| Drawn length |
6.37 in. min. to 8 in. max. (161.8 to 203.2 mm) |
| Included |
Extension rods only |
| Ship weight |
0.5 lb (0.23 kg) |
Compatibility
The Kidde sheet lists the 1500-7 for the 1501, 1502, 1504, 1505, 1508 and 1509-AQN5 door holders but does not say which models it fits. Check the holder model and the distance between holder and door before ordering.
Choosing a length
Replacement armatures are separate parts: CS2595-5 short, and CS2598-5 long (1504 only).
