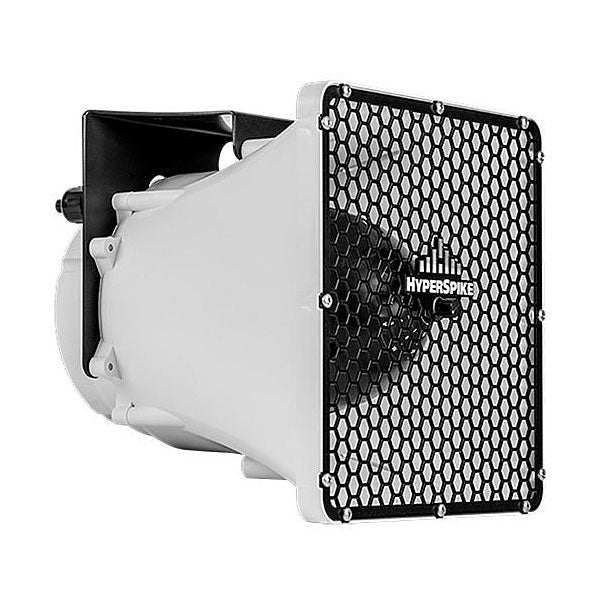

HyperSpike 90215A-801-06-L — a TCPA-10 distributed audio loudspeaker in white, certified to UL 1480 and for Class I Division 2.
The TCPA-10 family splits in two and this is the fire alarm half. The distributed audio model runs from 25 V, 70 V and 100 VRMS lines through five field-selectable taps and carries a DC blocking capacitor so the panel can supervise the circuit. The 90219A direct drive models are for public address.
- Taps 0.5/1/1.5/2/3 W at 25 V, 4/8/12/16/24 W at 70 V, 8 to 45 W at 100 V
- Tap impedances 1,250, 625, 416, 312 and 208 Ω; nominal 8 Ω voice coil
- Sensitivity 112 dB at 1 W and 1 m; 139 dB maximum SPL at 1 m
- Dispersion 90 degrees at -6 dB; 400 Hz to 4 kHz general signalling
- Maximum supervisory voltage 50 VDC; three feet of conduit, 18 AWG leads
- -40 to 60 °C; performs to NEMA 3R; 9 lb
- UL 1480-F, ULC S541 / CSA C22.2 No. 205 and 213; C1D2 Groups A to D
The number decodes from the Ultra syntax block: 90215A distributed audio against 90219A direct drive, 801 the 8 ohm configuration, 06 white against 01 black, 04 gray and 05 red, and L the UL 1480 plus C1D2 certification.
Documents
FAQ
Is the 90215A-801-06-L suitable outdoors?
Yes. It is rated for indoor or outdoor applications, performs to NEMA 3R, and operates from -40 to 60 °C.
What does the 06 in the model number mean?
It is the white finish; the TCPA-10 also comes in black (01), gray (04) and red (05).
Is a mounting bracket available?
Yes. The TCPA-10 has a universal mounting interface, and the optional dual mount system creates a 180° wide beam for outdoor perimeter use.
How is it wired?
It is supplied with three feet of conduit with flying leads, and includes DC supervision of the wiring.
