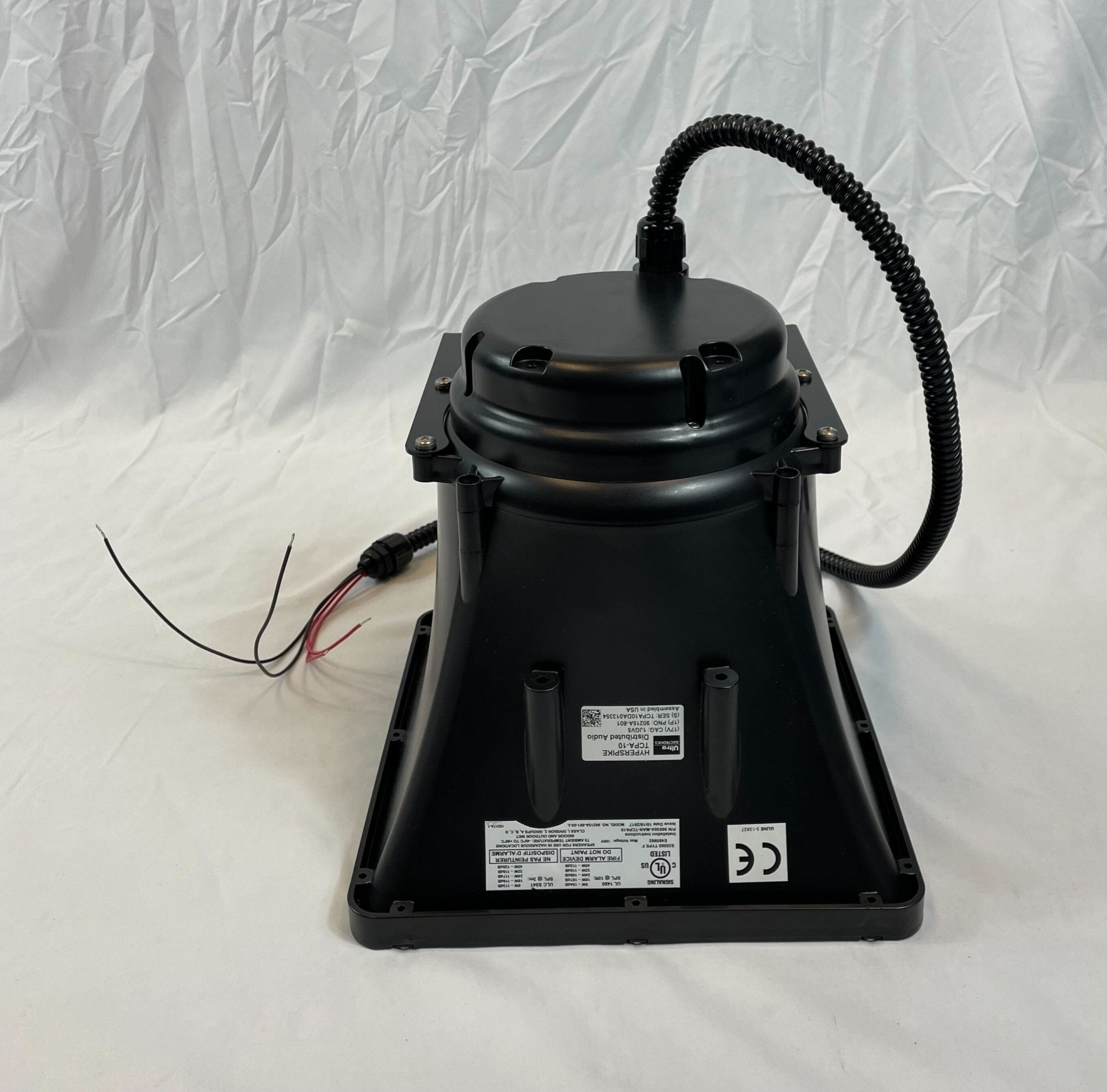

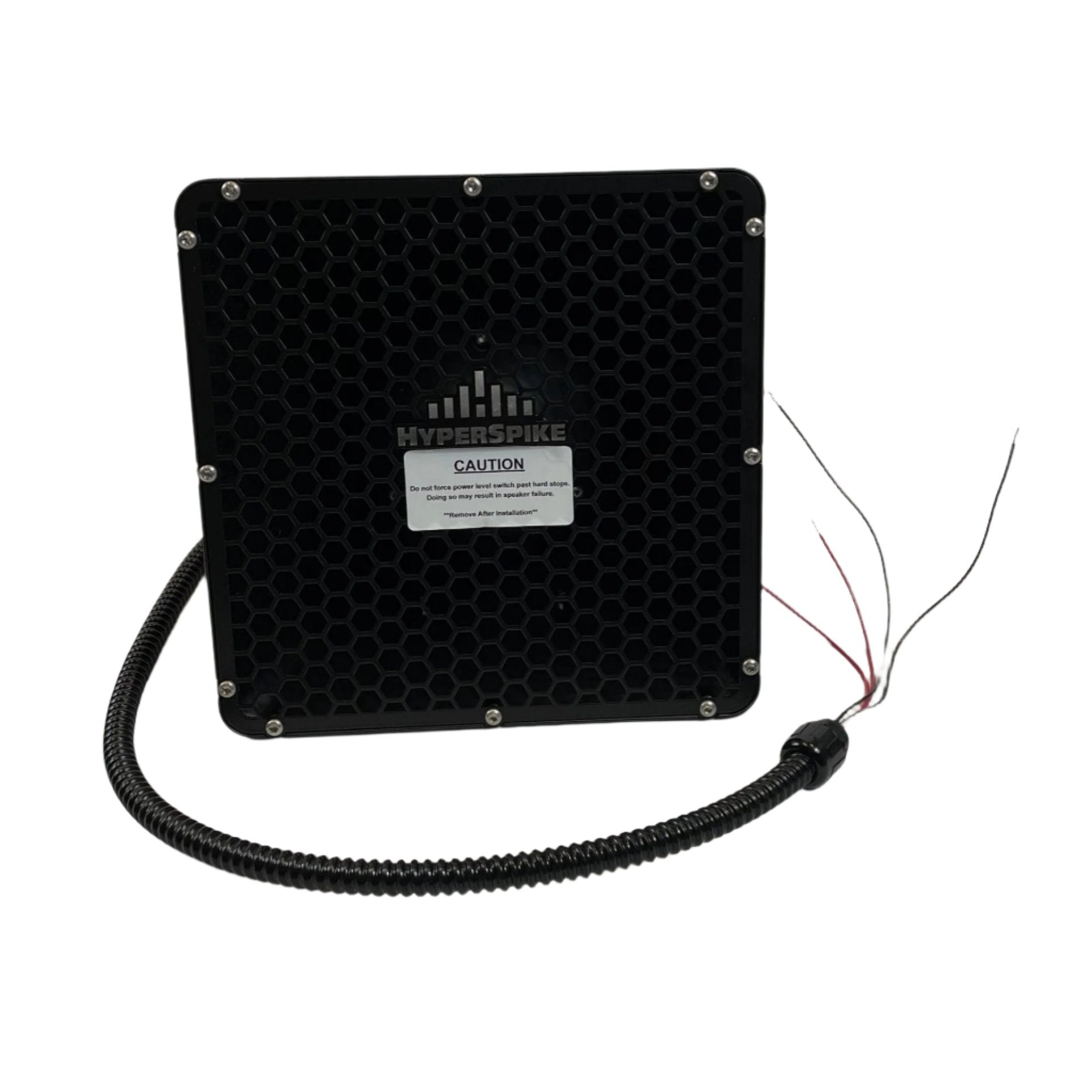

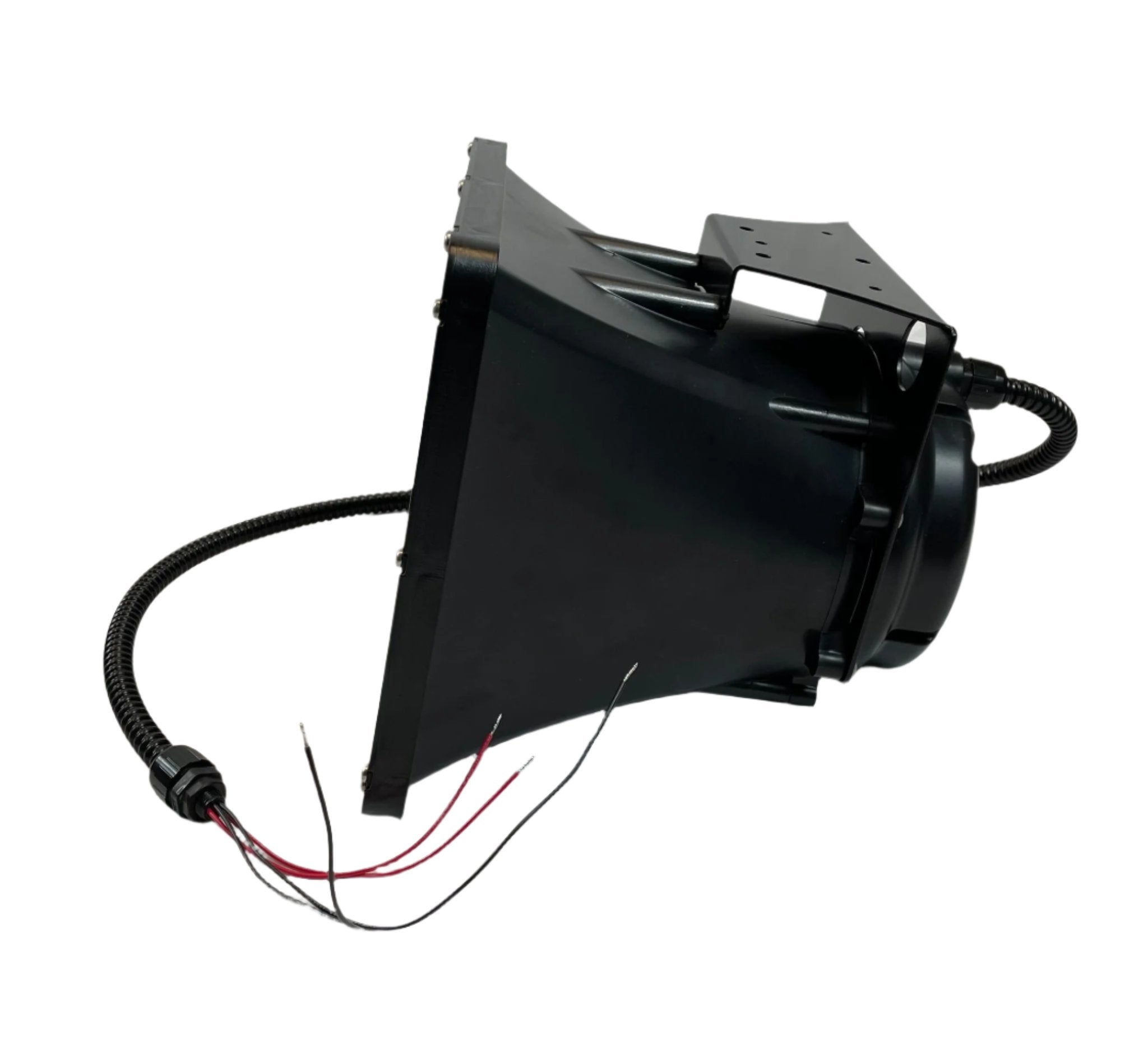

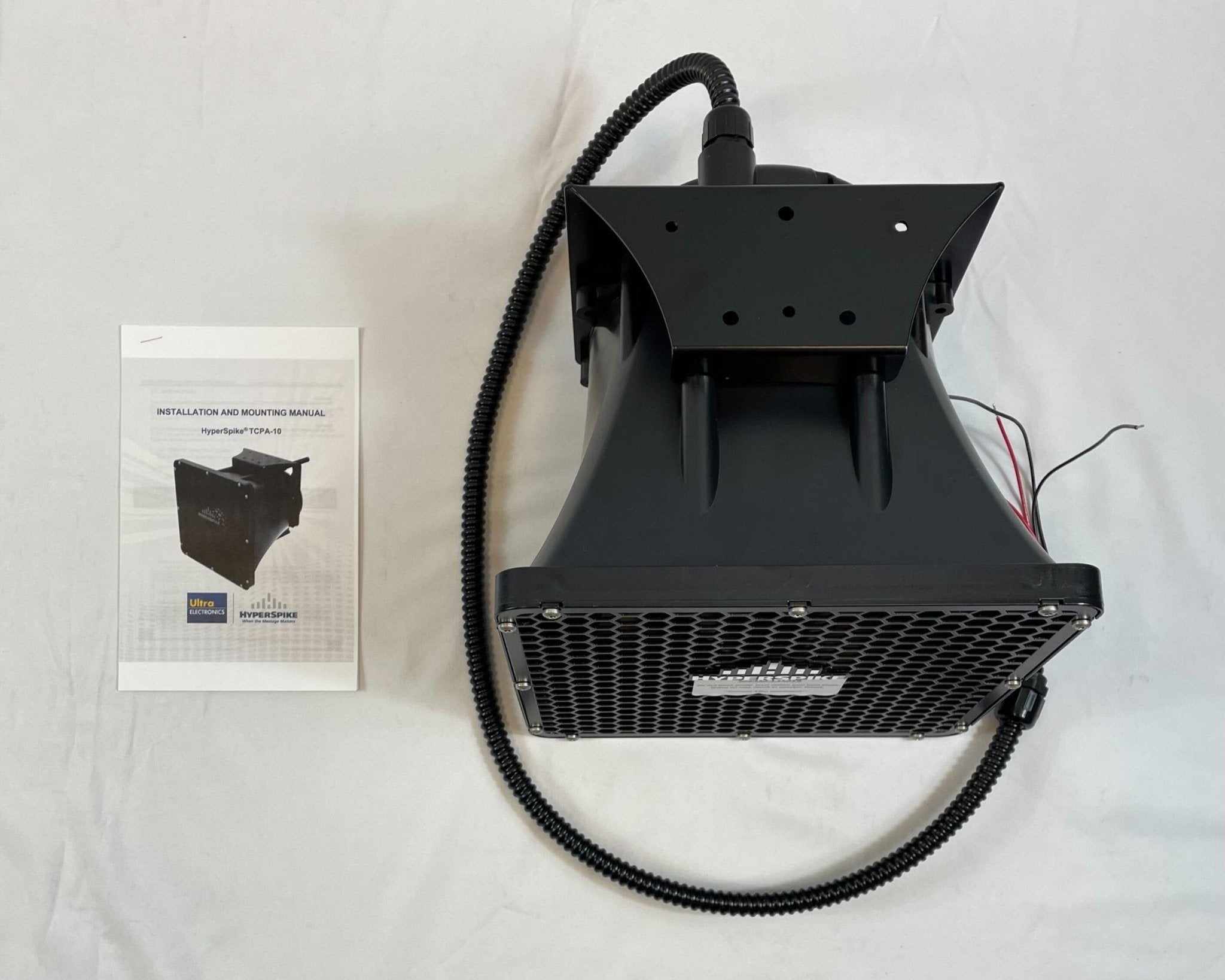

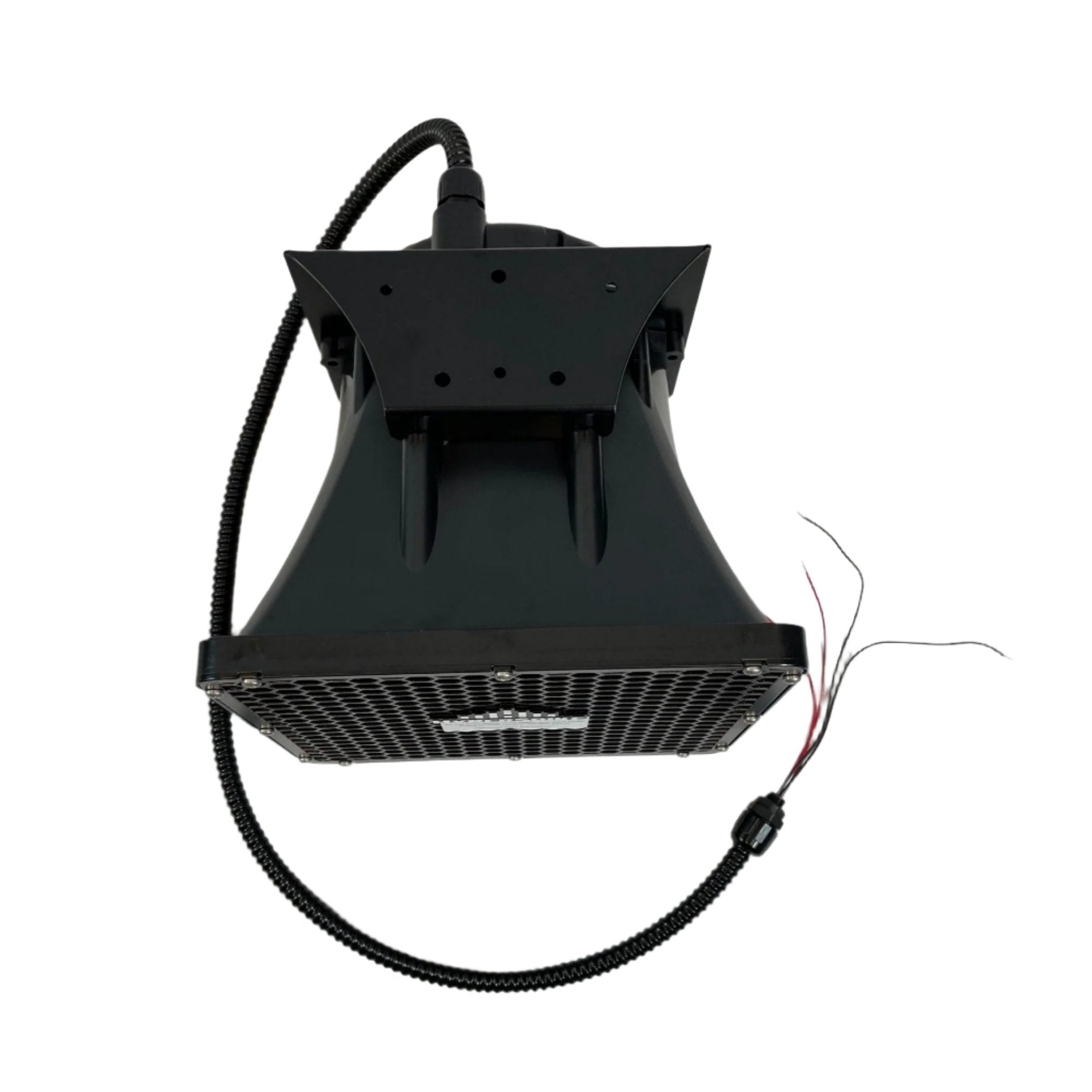

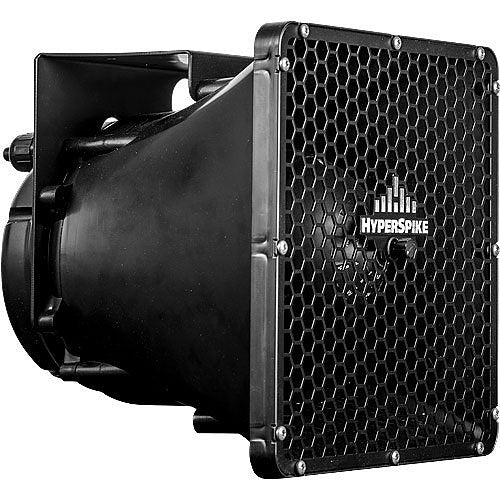

HyperSpike 90215A-801-01-L — TCPA-10 high-output paging and tone loudspeaker, black, with a built-in 25/70/100 V distributed audio transformer.
Ultra Electronics builds the TCPA-10 to carry voice and tones through high ambient noise indoors or out. Five taps are set with a screwdriver on the front, so one number suits 25, 70 and 100 V.
- Taps of 100 V at 45, 32, 24, 16 and 8 W; 70 V at 24, 16, 12, 8 and 4 W; 25 V at 3, 2, 1.5, 1 and 0.5 W
- 139 dB peak SPL at 1 m on the 45 W tap, down to 119 dB peak on the 0.5 W tap; sensitivity 112 dB at 1 W and 1 m
- Dispersion 60° at -3 dB, 90° at -6 dB; response 375 Hz to 15 kHz

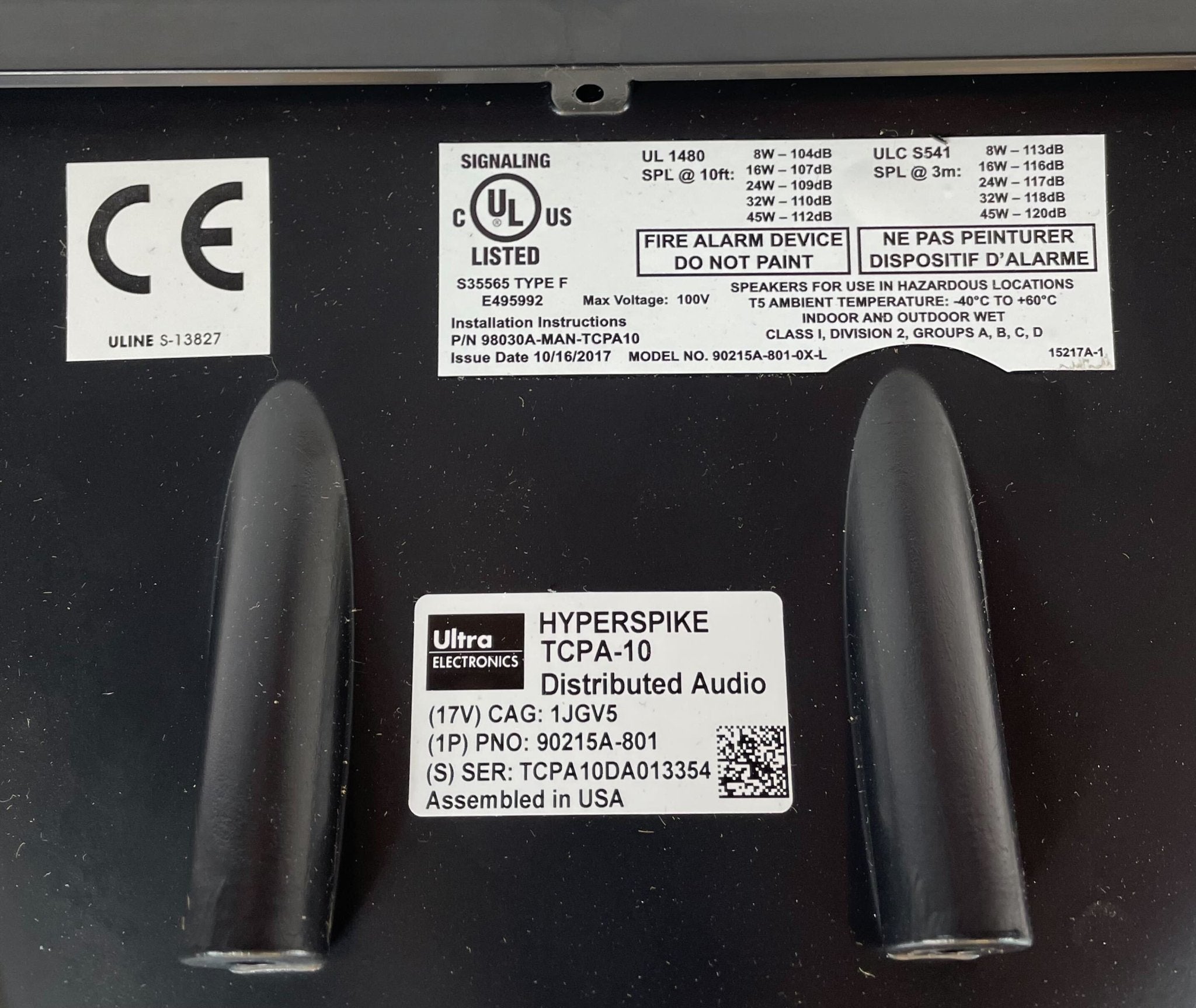

- UL 1480-F certified, Class I Division 2 Groups A, B, C and D, ULC S541, CSA C22.2 No. 205 and 213
- 10.1 × 10.1 × 11.3 in., 9 lb, NEMA 3R, -40 to 60 °C; three feet of conduit with 18 AWG leads and an in-line capacitor for DC supervision
Read the model number before ordering: 90215A is this distributed audio build and 90219A the direct-drive version with no transformer, sold 8 ohm as -801 or 4 ohm as -802. The trailing 01 is black, 04 gray, 05 red and 06 white.
Documents
FAQ
Does it work on 25 V, 70 V and 100 V systems?
Yes. The 90215A distributed audio model has five front-panel taps: 0.5 to 3 W at 25 V, 4 to 24 W at 70 V and 8 to 45 W at 100 V, set with a slotted screwdriver.
Can it be installed in hazardous or outdoor locations?
It is certified for Class I Division 2, Groups A, B, C and D, performs to NEMA 3R and operates from -40°C to 60°C indoors or outdoors.
How is the wiring supervised?

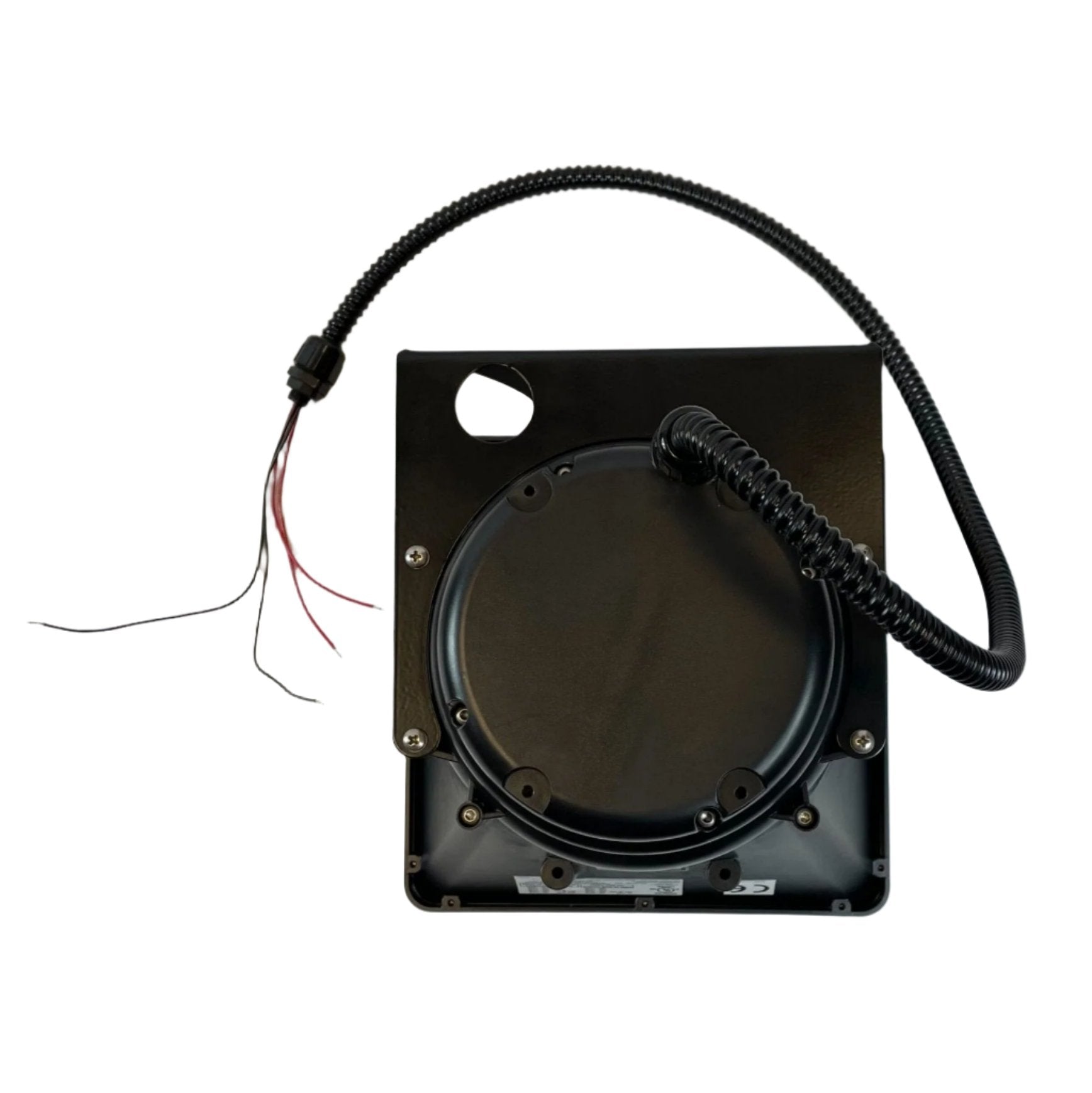

The speaker has an in-line capacitor for DC supervision and comes with three feet of 1/4 trade size flexible conduit with 18 AWG leads.
What mounting accessories are available?
The 72377B-801 wall/pole mount bracket and the 72378B-801 dual unit mounting adapter, which creates a 180° beam.
