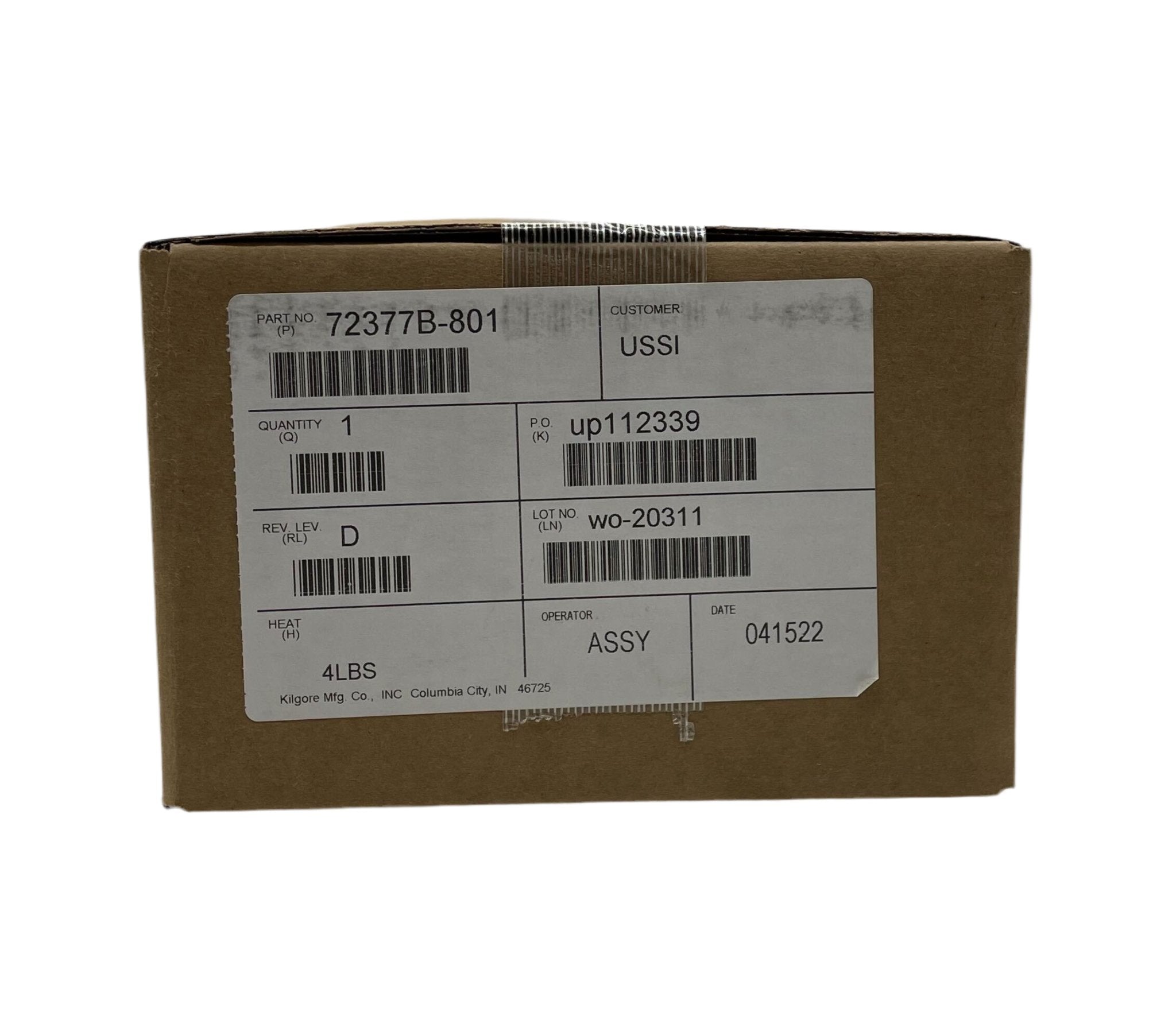

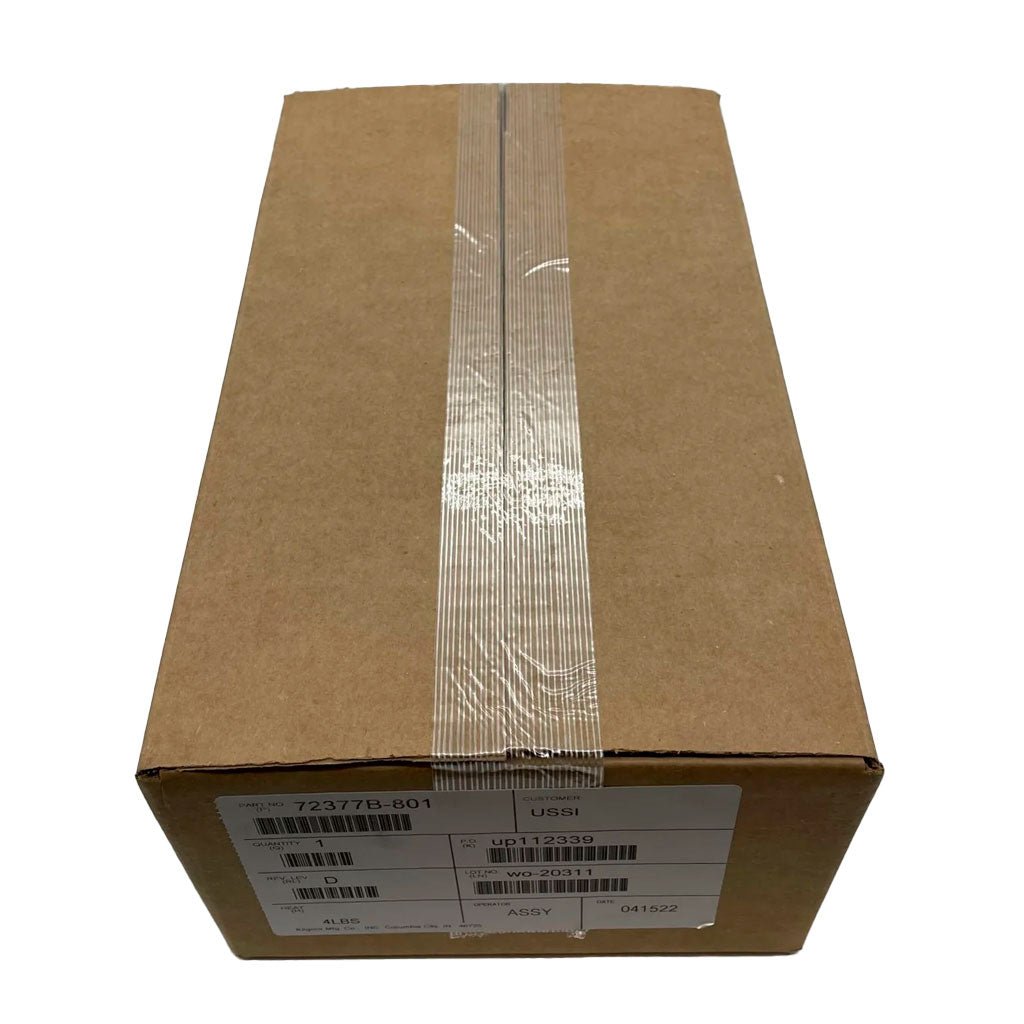

HyperSpike 72377B-801 — wall/pole mount bracket for the HyperSpike TCPA-10 long-range loudspeaker, an optional accessory from Ultra Electronics – USSI.
The TCPA-10 hangs from a mounting bracket, and this arm is the wall bracket its manual lists as an optional accessory. With the 72378B-801 Dual Unit Mounting Adapter two speakers share one bracket for 180° coverage. Wall or pole fixings are chosen to suit local codes.
- Fits: HyperSpike TCPA-10 loudspeakers (90215A distributed audio, 90219A direct drive)
- Single speaker: TCPA-10 mounting bracket attaches with three 1/4-20 bolts
- Two speakers: bracket to the middle holes of the 72378B-801 plate
- Pole mounting: two worm-gear metal bands, poles 3.25 to 6.0 in. diameter
- Band tightening torque: do not exceed 30 in-lb
Ultra documents differ on whether the bands are included: the mount sheet says so, but the TCPA-10 manual lists a separate 72379B-801 Pole Mount Adapter. Not the 72377B-802 ceiling kit, nor the 72581B-801 pole kit for LineWave speakers.
Documents
FAQ
What is the 72377B-801 used for?
It is the optional wall mount bracket for the HyperSpike TCPA-10 loudspeaker, which hangs from its own mounting bracket attached to the wall bracket.
Can two speakers share one bracket?
Yes. Use the optional 72378B-801 Dual Unit Mounting Adapter to hang two TCPA-10 units together.
Is there a pole mount option?
The TCPA-10 manual lists the 72379B-801 Pole Mount Adapter as a separate accessory.
