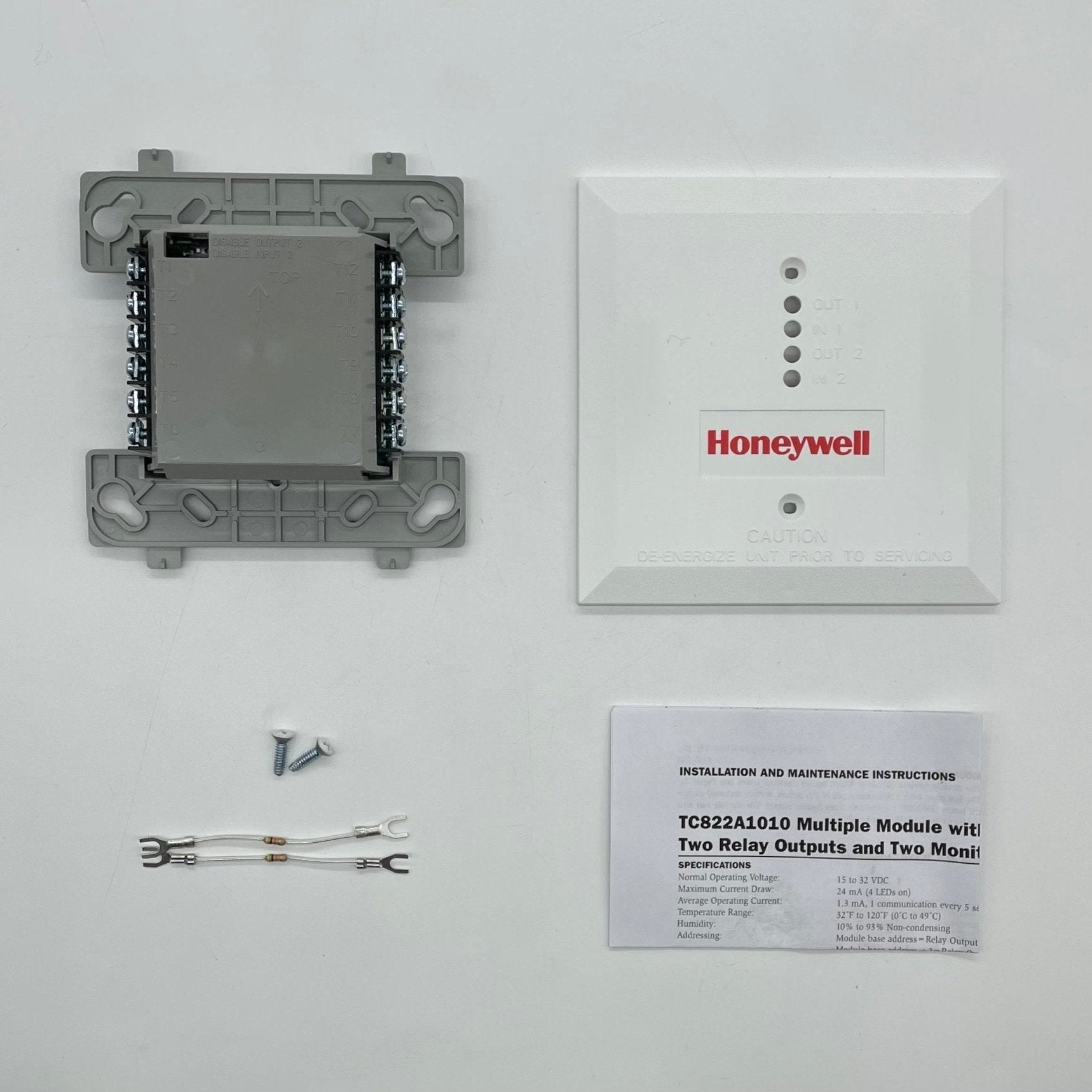

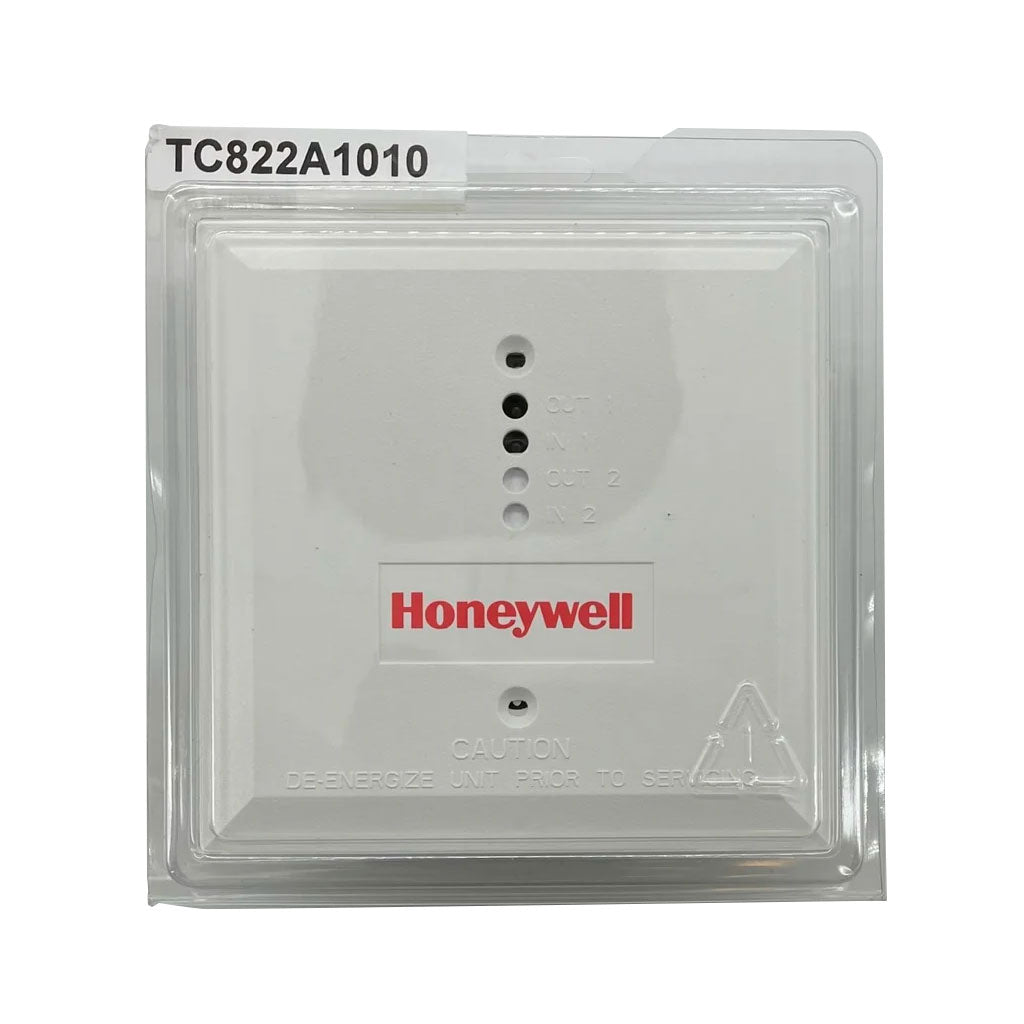

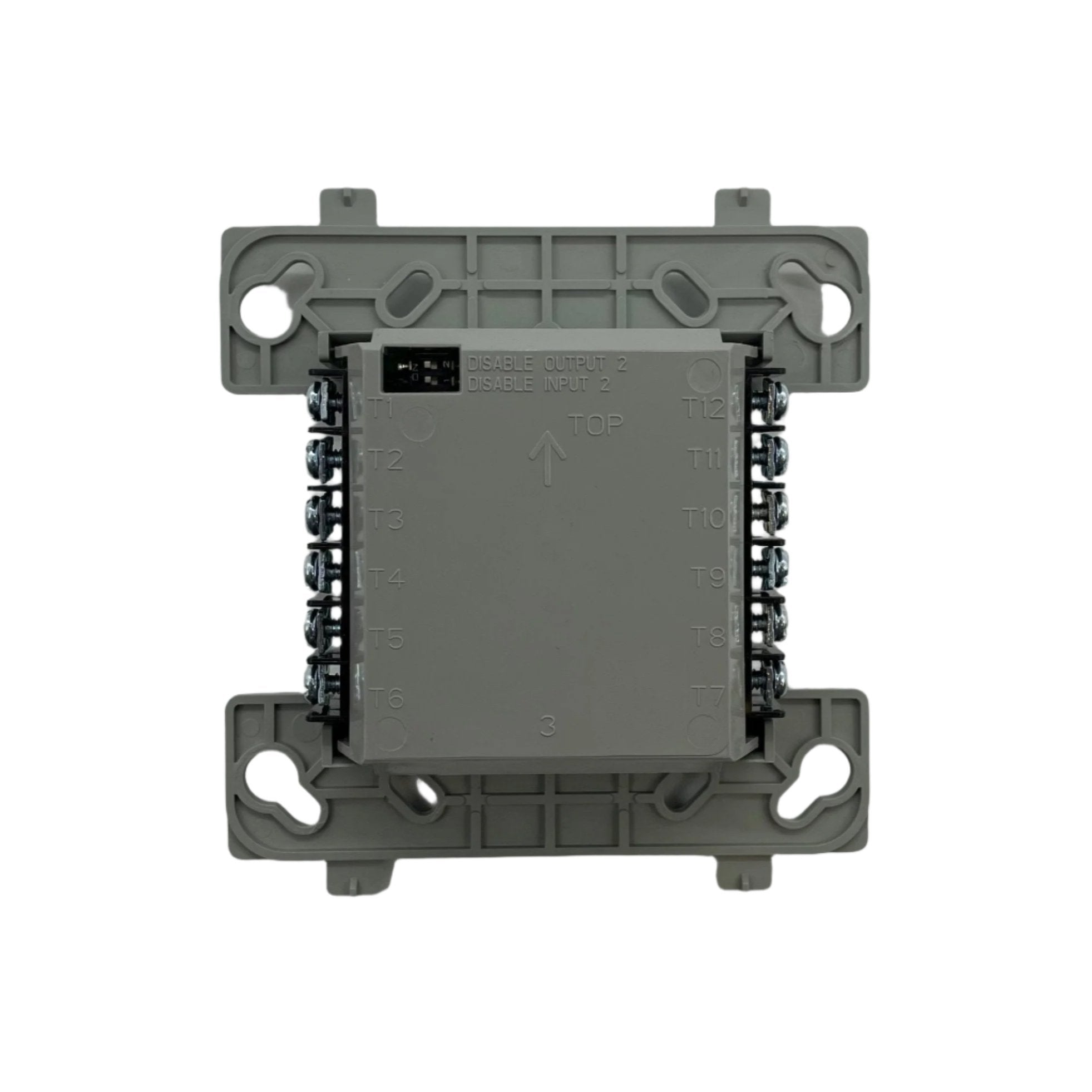

Honeywell TC822A1010 — FlashScan dual monitor / dual relay module for XLS intelligent addressable fire alarm panels.
This is the module installers reach for when one location needs both supervision and control — monitoring a flow and tamper switch, say, while driving a damper and a door holder. Two monitor inputs and two relay outputs in one housing save a pair of separate modules and a junction box, which is why it is called a two-in two-out module.
- Two Class B monitored inputs plus two Form C relay outputs in one module
- FlashScan protocol on the two-wire SLC
- For Honeywell XLS120, XLS120C, XLS120E, XLS140-2 and XLS3000 addressable panels

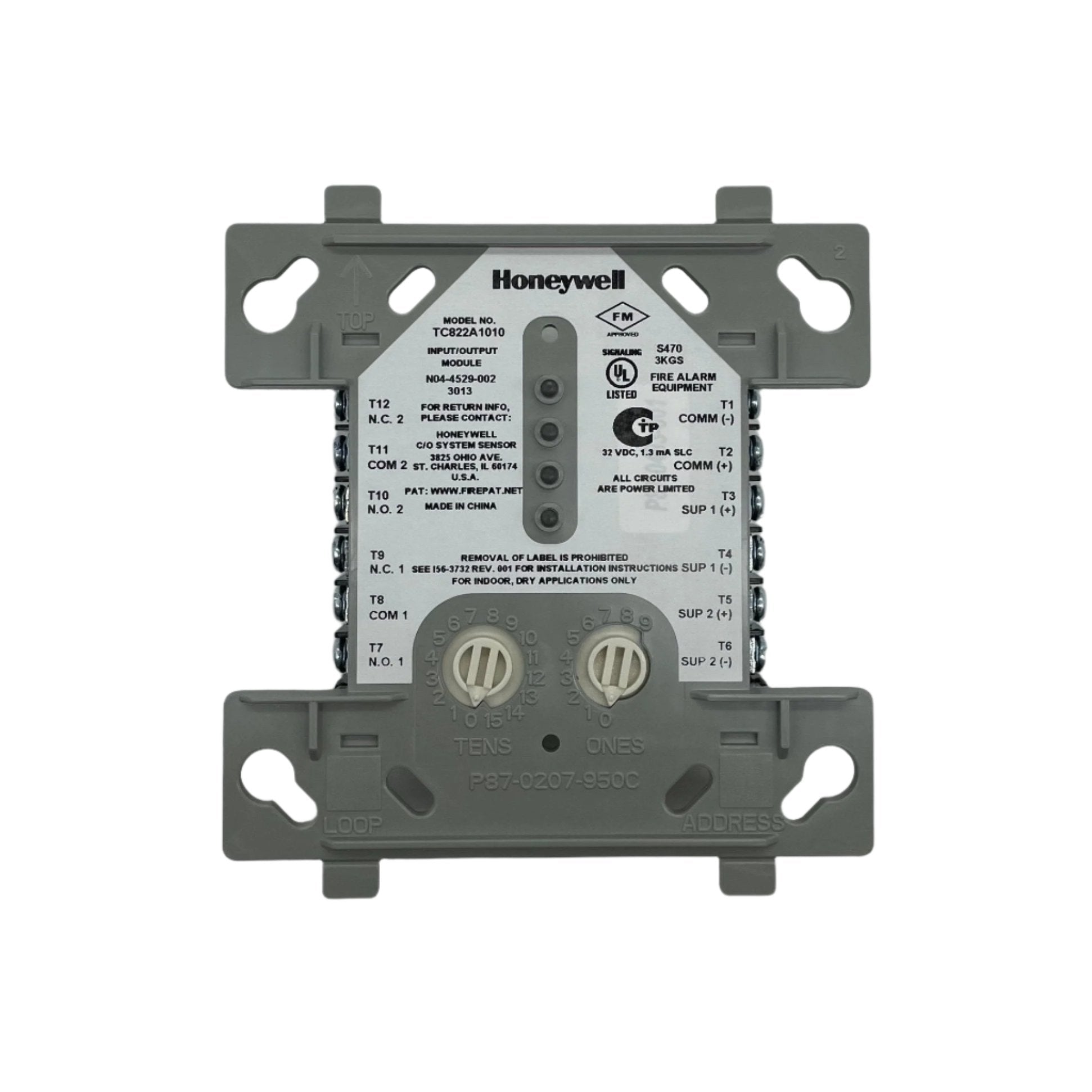

- Rotary decade address switches; each input and each relay is individually annunciated
- ULC-certified variant ordered as TC822A1010CDN
Because each input and relay is reported separately, the module occupies more than one consecutive SLC point — confirm the address count in Honeywell document 74-5104 before laying out the loop. Class A circuits are not supported.
