Honeywell TC808W1000 Wireless Heat Intel Rate-of-Rise

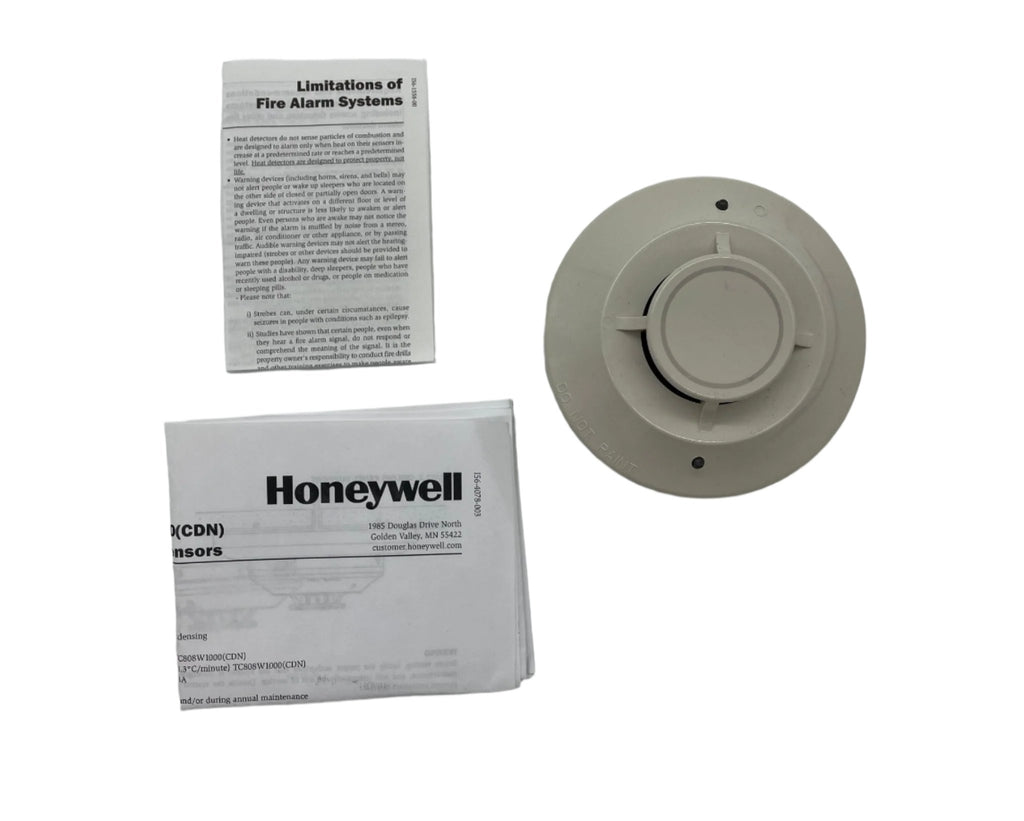

The TC808W1000 is a Honeywell SWIFT wireless intelligent heat sensor that combines rate-of-rise detection with a 135 F fixed-temperature alarm. It uses a thermistor sensing circuit and rotary dial switches for setting the address, runs on four CR123A batteries, and must be installed per the control panel manual and the SWIFT Wireless Manual.
Key Features
- Wireless intelligent heat sensor with thermistor sensing circuit
- Rate-of-rise detection plus 135 F (57 C) fixed-temperature alarm

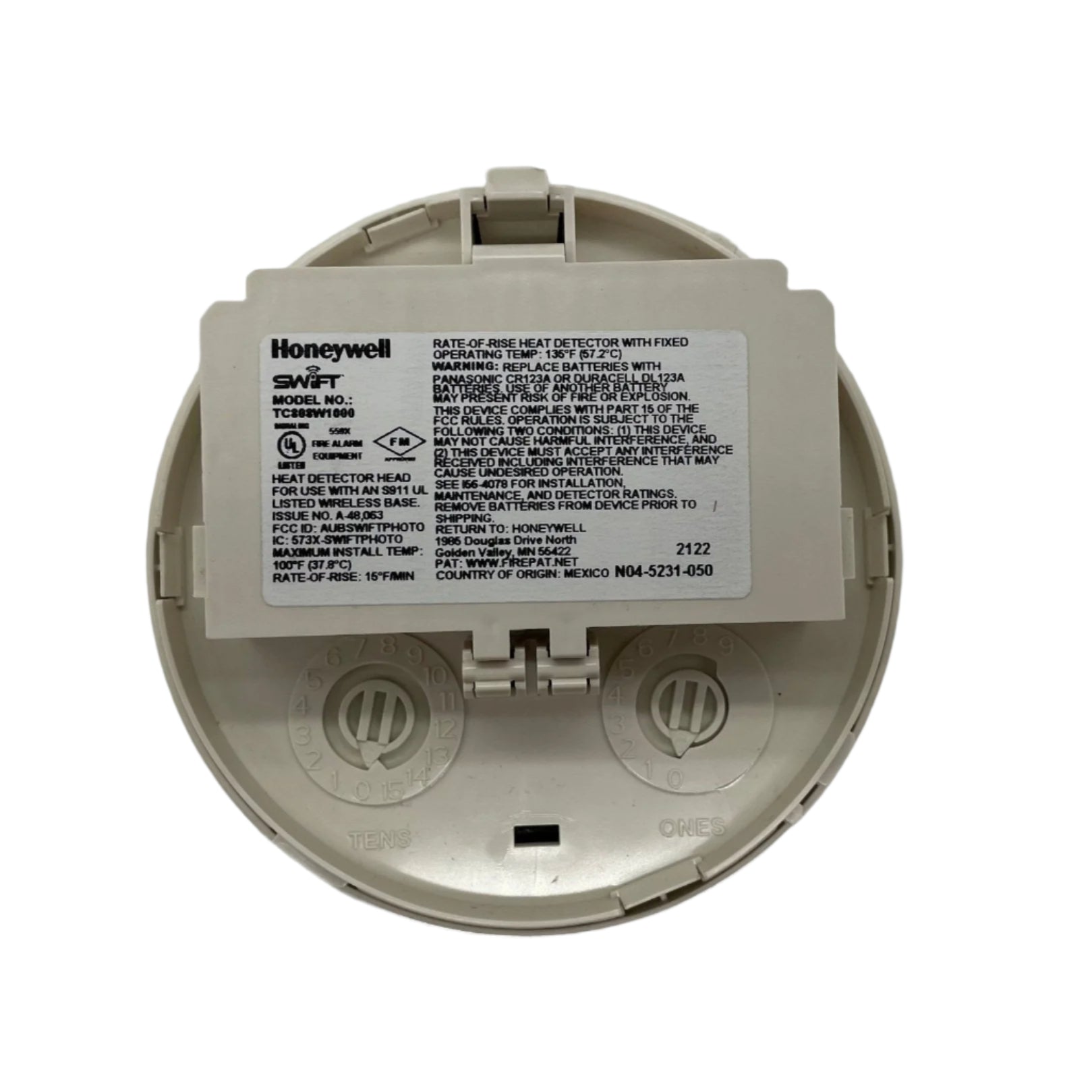

- Address set with rotary dial switches
- Powered by 4 CR123A (Panasonic) or DL123A (Duracell) batteries; 2 year minimum battery life
- Installs in the B210W base
- Low battery reported as a trouble at the panel
Specifications
| Fixed temperature rating |
135 F (57 C) |
| Rate-of-rise detection |
Responds to more than 15 F/min (8.3 C/min) |
| Maximum operating voltage |
3.3 VDC |
| Maximum standby current |
210 uA |
| Operating humidity |
10% to 93% RH, non-condensing |
| Installation temperature |
32 to 100 F (0 to 38 C) |
| Battery type |
4 x Panasonic CR123A or Duracell DL123A |
| Battery life |
2 years minimum |
| Height |
2.4 in. (61 mm) installed in B210W base |
| Diameter |
6.0 in. (152 mm) installed in B210W base |
| Weight |
9.2 oz (261 g) in B210W base with 4 batteries |
Compatible With
- Honeywell SWIFT wireless system and compatible addressable fire alarm control panels
- B210W base
