Honeywell HW-AV-ENC2-PS is a 12 V power supply in a metal enclosure designed to power and house the CLSS Pathway communicator (HW-AV-LTE-M-2, sold separately). It provides a regulated DC supply with integrated battery backup and fault monitoring, and is ETL certified to UL 864 and UL 2610.

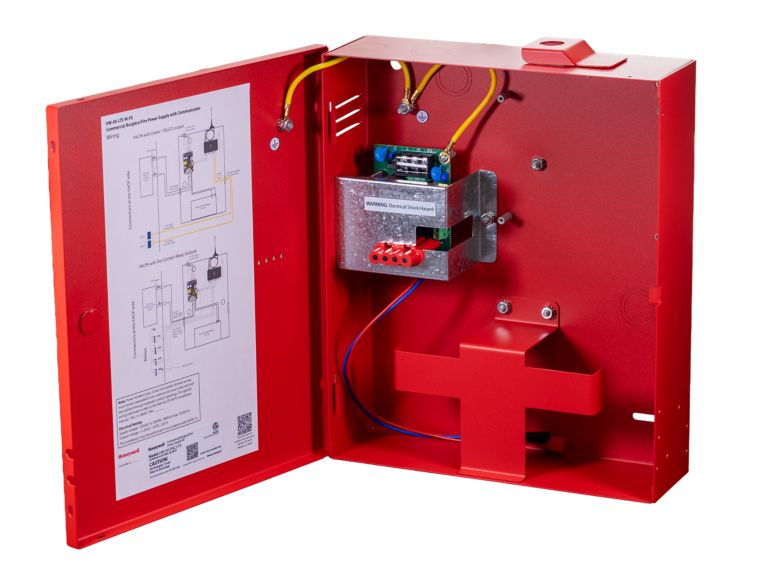

The enclosure holds the CLSS Pathway and one 12 V battery of 7, 8 or 8.5 Ah, and the Pathway antenna can mount on top with the included metal bracket. Diagnostic LEDs are visible from outside, the door is removable, double knockouts ease wiring, and the box is predrilled for a tamper switch.
Specifications
| Primary input |
120 to 240 VAC, 50/60 Hz, 200 mA max |
| AUX output |
12 to 15 VDC, 0.61 A |
| Battery |
One 12 V SLA, 7, 8 or 8.5 Ah (cable included) |
| Relays |
Two normally energized Form C, 1 A at 24 VDC |
| AC trouble delay |
0 or 1 hour, jumper selectable |
| Operating temperature |
14°F to 140°F (-10°C to 60°C) |
| Humidity |
0% to 93% non-condensing |
| Dimensions |
9.96 in. L x 11.89 in. W x 2.95 in. D |
| Weight |
5.2 lb (2.36 kg) |
| Certifications |
ETL to UL 864 and UL 2610 |
Installation notes
- Mount the CLSS Pathway inside the enclosure; secure its antenna on top with the included bracket
- Use one 12 V 7 Ah battery such as the PS-1270-F1 or NP7-12
- Install per NFPA 70 and NFPA 72
Related models
- HW-AV-LTE-M-2: CLSS Pathway dual path LTE communicator
Documents
FAQ
Is the CLSS Pathway communicator included?
No. The HW-AV-LTE-M-2 CLSS Pathway is sold separately; this enclosure provides its power and mounting.
What battery does it use?
One 12 V sealed lead-acid battery of 7, 8 or 8.5 Ah, such as the PS-1270-F1 or NP7-12. The battery cable is included.
What does it report as trouble?
Two normally energized Form C relays: one for AC trouble, the other for battery, charger, communication path and other general troubles. The AC trouble report delay is set to 0 or 1 hour by jumper.
What input power does it need?
120 to 240 VAC, 50/60 Hz, 200 mA maximum.
