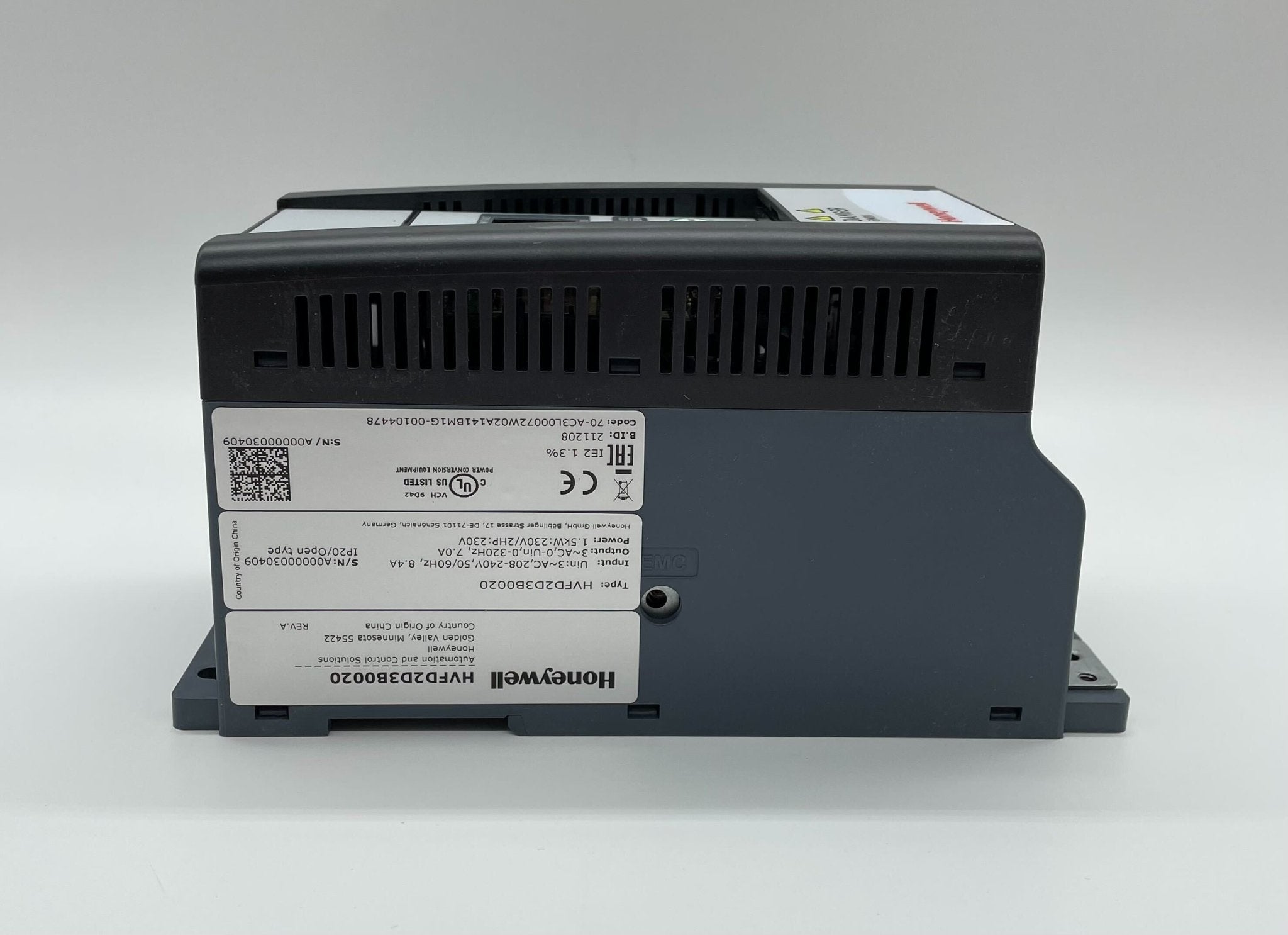

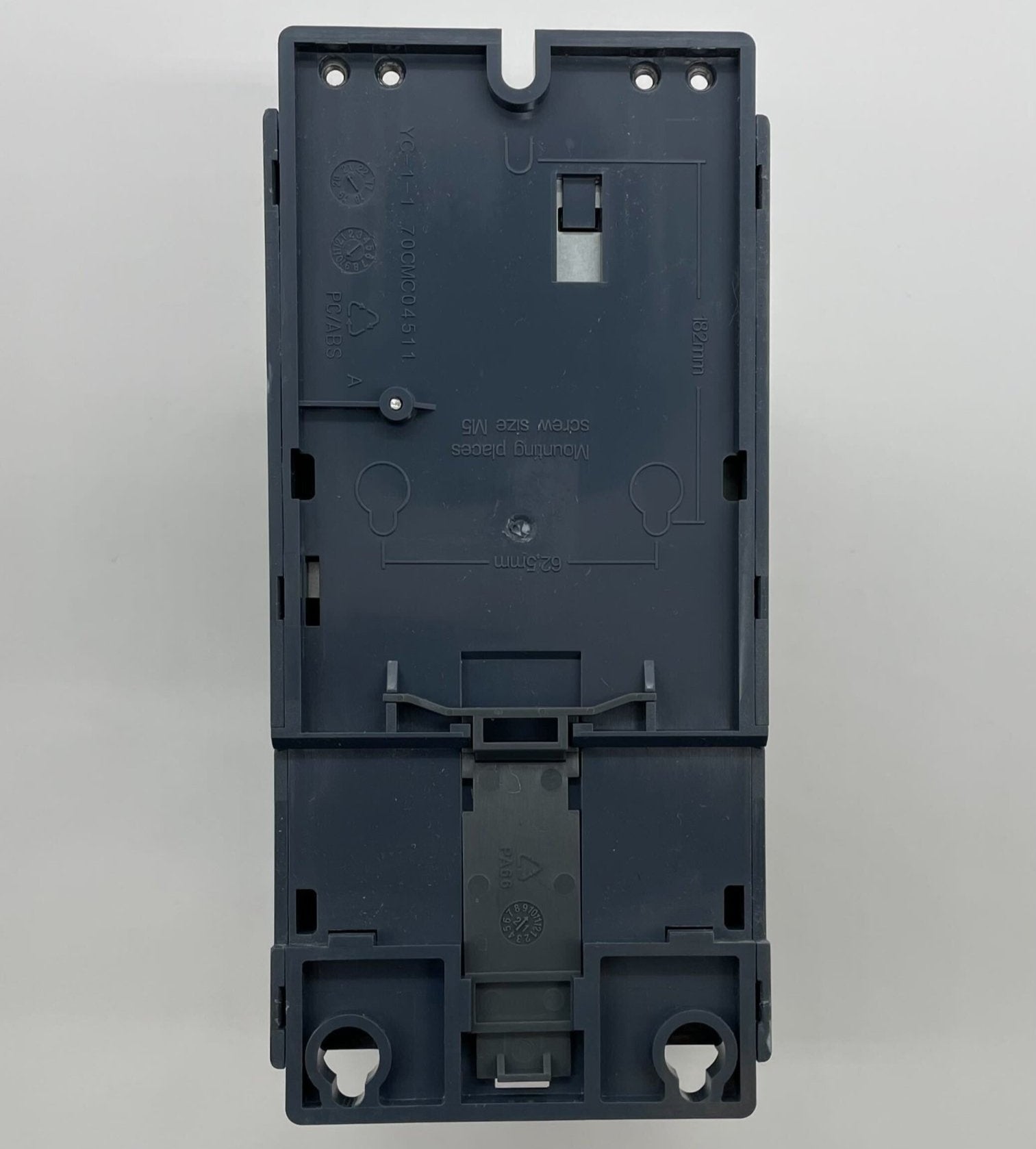

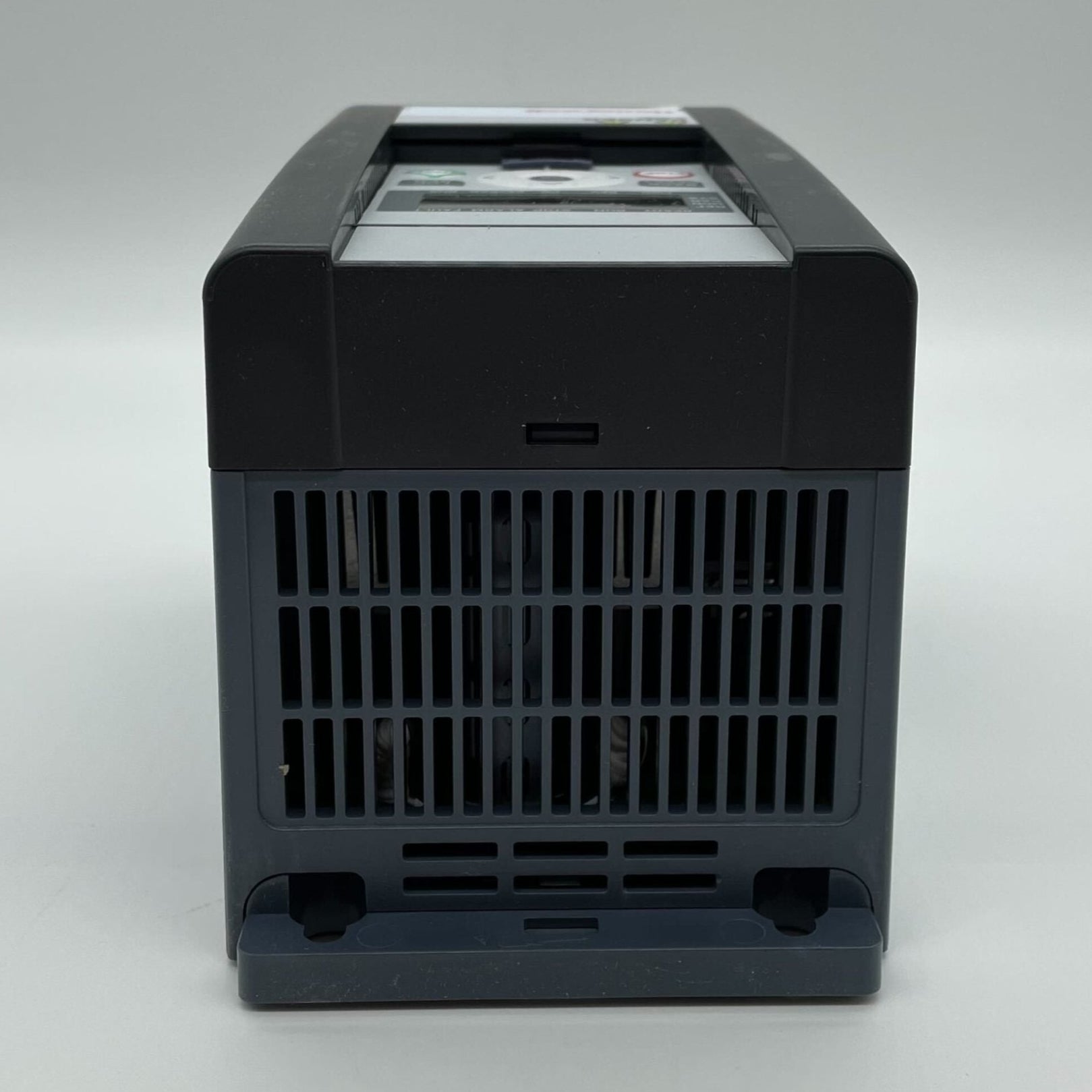

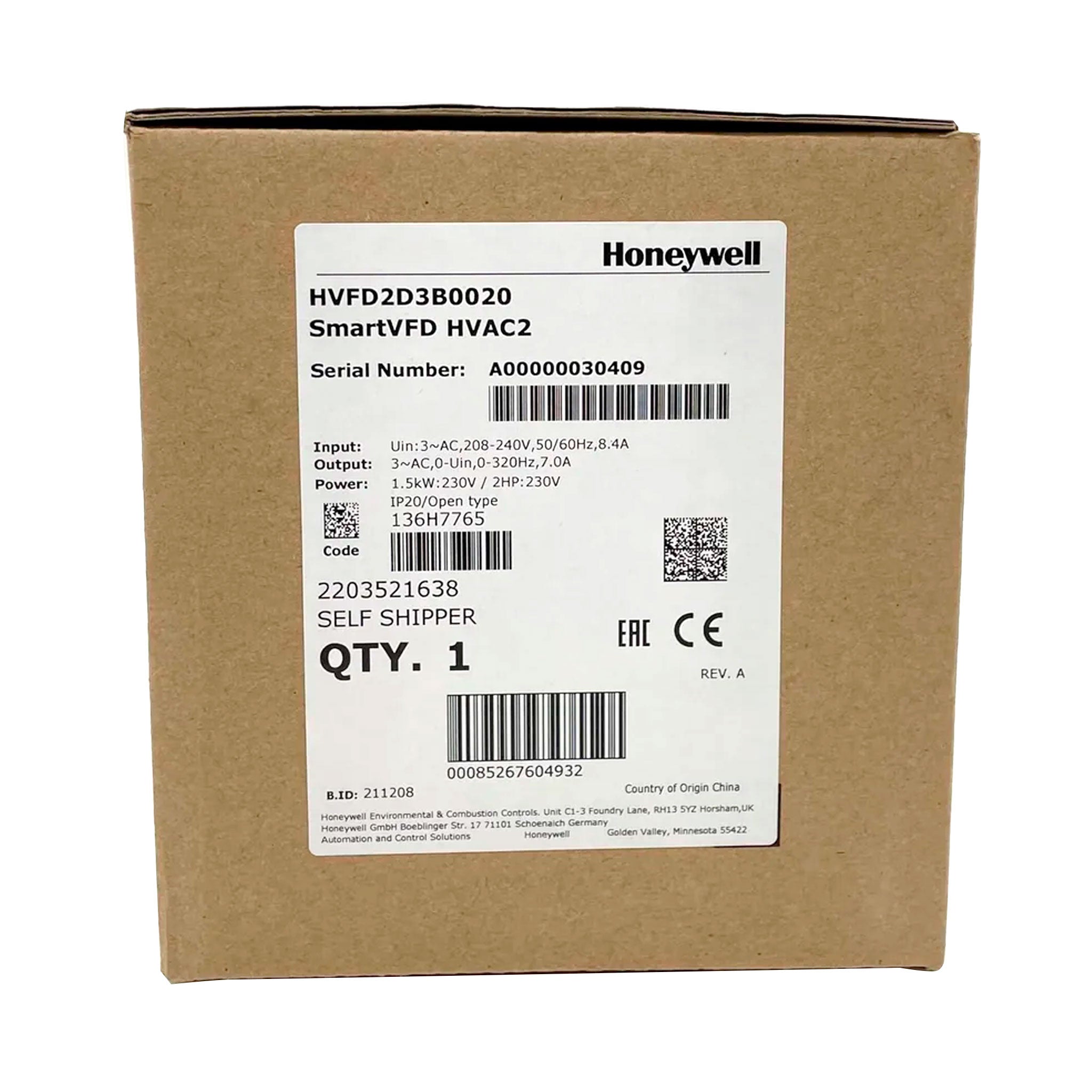

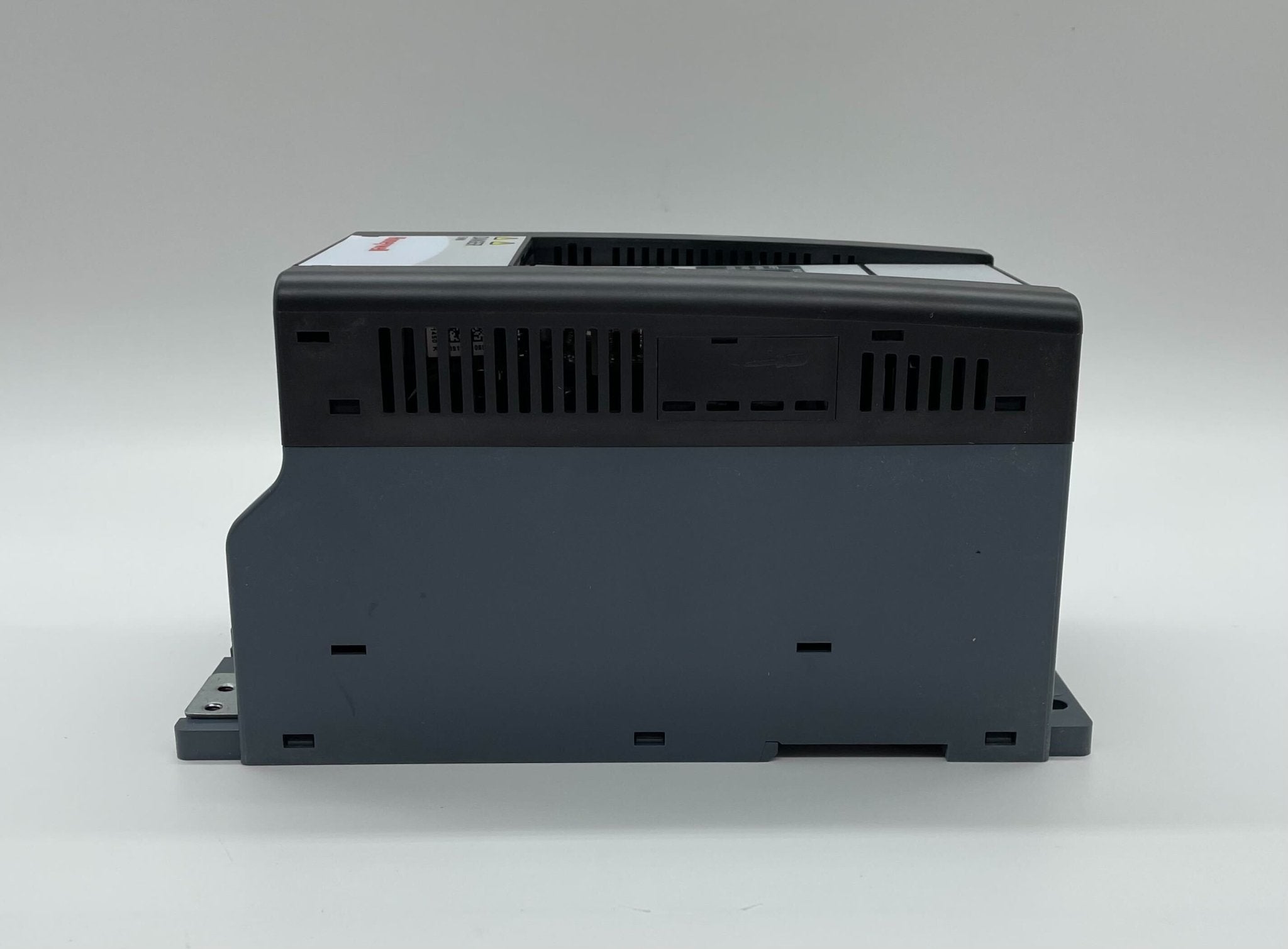

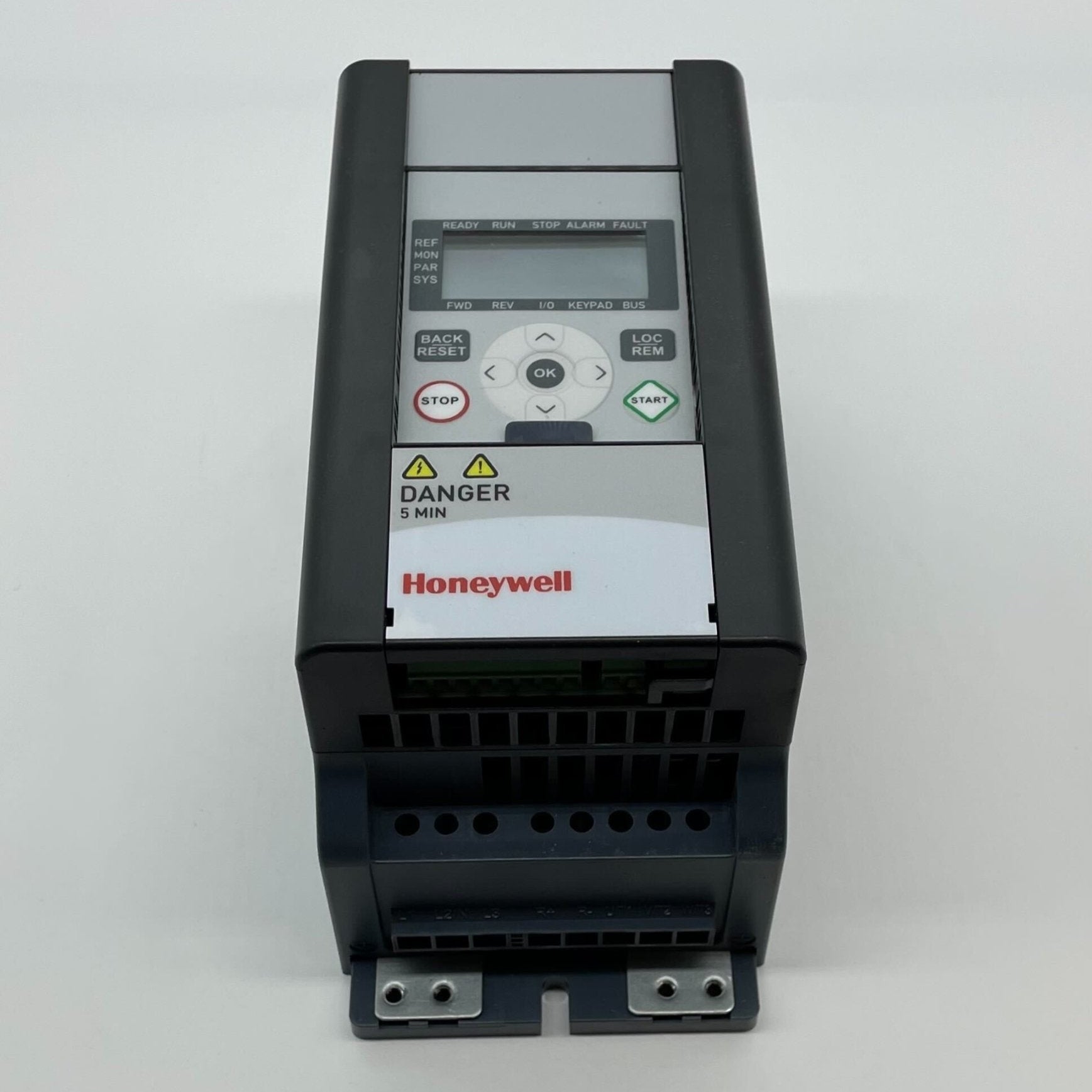

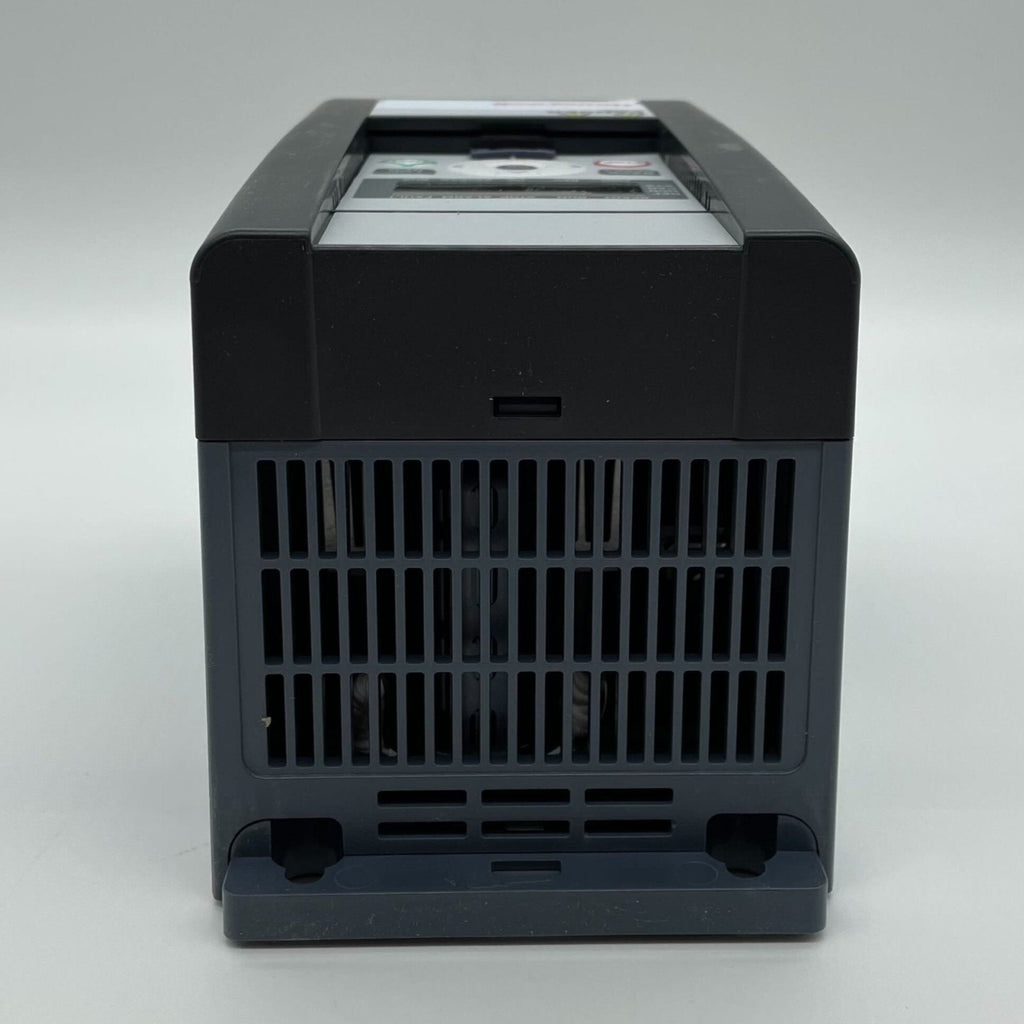

Honeywell HVFD2D3B0020 — SmartVFD HVAC2 variable frequency drive, 2 HP on a 208–240 V three-phase supply, mechanical size MI2.
It gives stepless speed control for pumps, fans and compressors, with an integrated PID controller that lets a sensor wired straight to the drive close the loop without a separate controller. Control is by U/f frequency control or open loop sensorless vector control, and RS485 Modbus is built in.
- 7 A continuous, 10.5 A at 150 percent overload, nominal input current 8.4 A
- Motor shaft power 2 HP, 1.5 kW
- Input 208–240 V three phase at 45–66 Hz
- Output 0 to 320 Hz; switching frequency 1–16 kHz, 4 kHz default
- Enclosure class IP20; NEMA 1 needs the separate HVFDCDNEMA1FR2 kit
- Maximum ambient 104 °F, 40 °C, for this model
- Safety UL508C, EN61800-5, CE, UL, cUL and KC; relay output 250 Vac 3 A
Three numbers in this family end 0020 and all three are 2 HP, differing only in the supply they accept. HVFD2D1B0020E2 is 208–240 V single-phase in and HVFD2D3C0020 is 380–480 V three-phase in at 4.3 A. Read the phase digit and the voltage letter, not the horsepower code alone.
