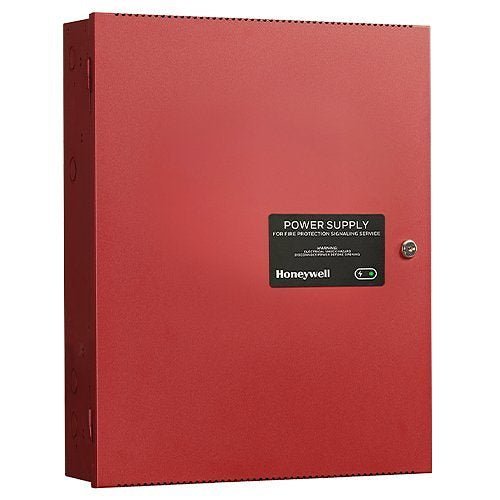

Honeywell Power HPF-PS6E — 6.0 A, 240 VAC remote charger power supply in a lockable red steel enclosure.
Mounted away from the control panel and triggered by NAC reverse polarity or a 12 or 24 VDC source, it re-powers notification circuits, auxiliary power and door holders from its own transformer and batteries. The charger is integral rather than remote.
- 240 VAC, 50/60 Hz, 2.7 A maximum primary power
- Up to five configurable power-limited outputs and two isolated inputs; 6.0 A in alarm, 3.0 A standby, 3 A per circuit
- Integral lead-acid charger, 27.6 VDC float, 1.5 A max; holds two 7 or 18 AH batteries, charges up to 33 AH externally
- NAC sync for System Sensor, Wheelock, Gentex and AMSECO; Temporal 3 or 4 coded output
- Two Form C trouble relays, 4 A at 24 VDC; trigger input 9 to 32 VDC
- 20.0 × 14.5 × 3.5 in. cabinet; UL 864 NAC expander mode, UL 1481, FM Approved
The E is the 240 VAC build: HPF-PS6 is the 120 VAC version and HPF-PS6B the black cabinet, while HPF-PS10E is the 10 A model. Class A wiring needs the ZNAC-PS card, and the two 12 V batteries are ordered separately.
