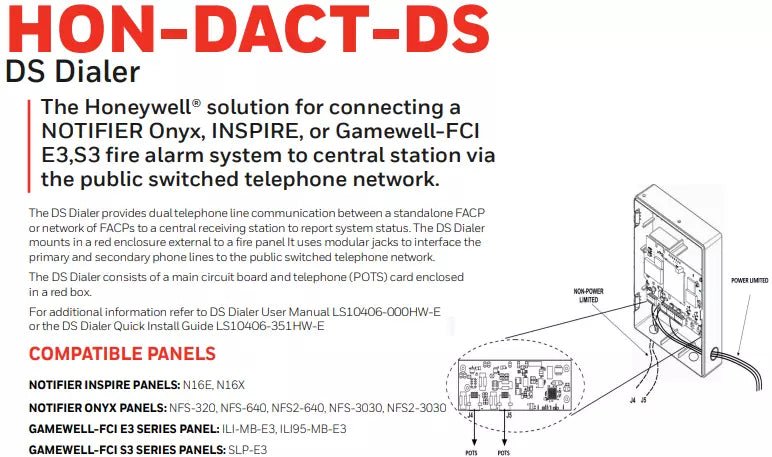

Honeywell HON-DACT-DS — the DS Dialer, a dual telephone line digital alarm communicator transmitter built as a main board and POTS card in its own red enclosure.
It is not a plug-in panel card. It mounts outside the fire alarm control panel and reports events from a standalone panel or a network of panels to a central receiving station over the public switched telephone network. Both lines are monitored for line voltage, and the dialer seizes the line to disconnect premises telephones sharing it.

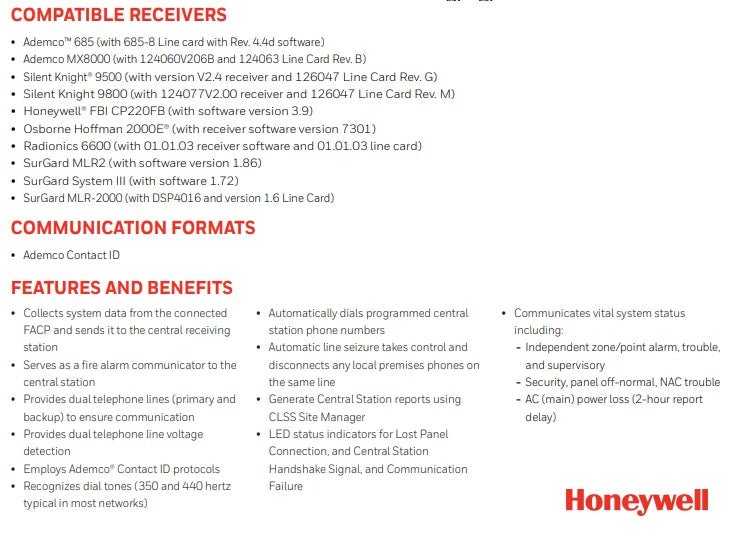

- Two POTS lines, Ademco Contact ID, dial tone detection at 350 and 440 Hz
- NOTIFIER INSPIRE N16E and N16X; NOTIFIER ONYX NFS-320, NFS-640, NFS2-640, NFS-3030, NFS2-3030; Gamewell-FCI ILI-MB-E3, ILI95-MB-E3, SLP-E3
- 18 to 30 VDC; 200 mA at 18 V, 150 mA at 24 V
- 10" high × 2 3/4" wide × 8" long, 2 lb
- ETL certified to UL 864 10th Edition, control number 5025335
Two RJ31X jacks, two MCBL-7 phone cords and a NUP serial cable, 32351718-001 or kit 50160636-001, are ordered separately. Where telephone lines are unavailable, HW-AV-LTE-M-2 CLSS Pathway is the cellular route.
Documents
FAQ
Which panels is the DS Dialer compatible with?
NOTIFIER INSPIRE N16E and N16X; ONYX NFS-320, NFS-640, NFS2-640, NFS-3030 and NFS2-3030; Gamewell-FCI E3 Series ILI-MB-E3 and ILI95-MB-E3; and the S3 Series SLP-E3.
Does it mount inside the panel?
No. It mounts in its own red enclosure outside the fire panel and uses modular jacks for the primary and secondary phone lines.
What reporting format does it use?
Ademco Contact ID only.
What else do I need to order?
Two MCBL-7 phone cords and a NUP serial cable, either 32351718-001 or kit 50160636-001 with a 30 ft cable and lock set.
